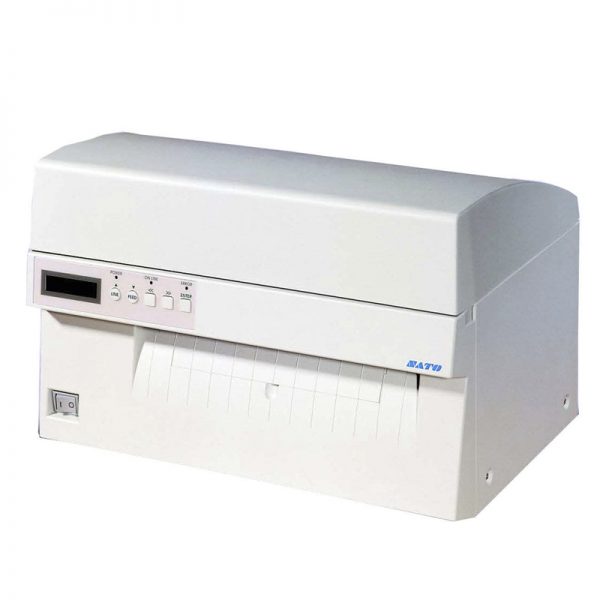

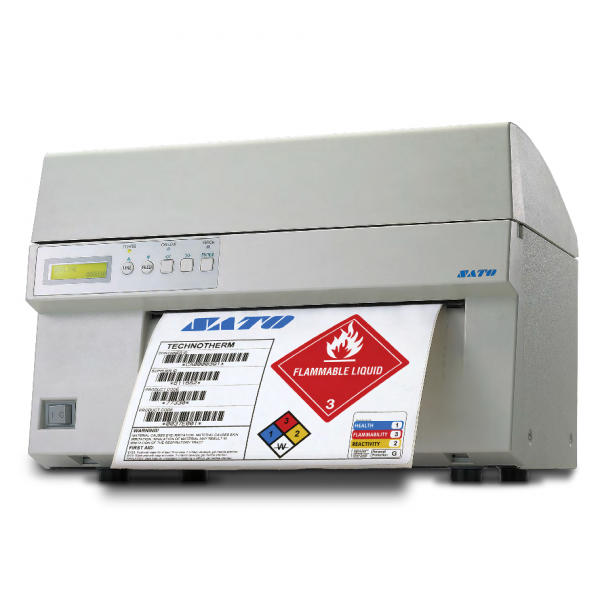

Sato M10e 10.5″ Wide Web Thermal Printer
SATO’s new wide web thermal printer M10e was designed with manufacturing applications in mind. This barcode printer creates labels up to a full 11.8 inches wide at a speed of up to 5 inches per second. The 10.5-inch printhead makes it possible to print large format compliance labels at top speed without rotating the image. The M10e printer can hold media sizes up to approximately 11.8” wide x 16.6” long. For maximum throughput, a 32-bit high speed RISC processor is in the heart of every M10e
Request for quotation for:
Sato M10e 10.5″ Wide Web Thermal Printer
- Description
- Specifications
- Brochure
Description
The Wide Web Thermal Printer with Industrial Compact Design
- Thermal Transfer Wrinkle-Free Operation
- Wide-Web Industrial Printer
- Print Technology Replacement and Connectivity
- Multilingual Display
- High-quality Printing up to 305dpi
- Automatic Label Loading via Label Edge Sensor
- Fast Print Speed of up to 125mm/sec
- Extra-Wide (267mm) Printing Area for Printing Large Labels or Multiple Labels Per Page
- Windows Compatible
Applications
- Compliance Labelling
- Chemical Labelling
- Automotive Labelling
- Paper/Pulp Labelling
- Shipping / Receiving Labelling
- Multiple-Up Labelling
- Lumber Labelling
- Inventory Control Labelling
Print Method Direct/Thermal Transfer Print Speed (max.) 5 ips Resolution 305 dpi Print Width 10.5" Media Width 5.2" to 11.8" Media Roll Paper: Max External Diameter 203.2mm (8"), Face-in Fan Fold Paper: Max Folding Height 100mm (3.94") Paper core Internal Diameter 76.2mm (3") Media Thickness 0.08 to 0.21mm (0.003" to 0.008") Memory 16MB RAM/6 MB Flash (4 MB available to download forms and fonts) Dimensions 475(W) x 313.4(D) x 319.2(H) mm / 18.71"(W) x 12.35"(D) x 12.58"(H) Weight 21.2kg
