Zebra ZC300 Card Printer

Zebra ZC300 Design and Print the Cards of Your Dreams

With the groundbreaking simplicity of the Zebra ZC300, you can print what you want, when you want, from just about anywhere. Print single or dual-sided edge-to-edge colour or black and white cards, with new ribbons that offer speciality colours and special effects. You get push-button card printing through elegant engineering that eliminates virtually all pain points typically associated with card printing. The slimmest fit-everywhere design in this printer class makes it easy to add card printing wherever you need it. And Print DNA offers a collection of high-value solutions that makes it easier than ever to integrate card printing into your apps, design cards and support your printers.

Request for quotation for:
Zebra ZC300 Card Printer

  • Description
  • Specifications

Description

Zebra ZC300

Groundbreaking Simplicity

With plug-and-play deployment, instant card feeder adjustment, intuitive icons and a graphical user interface, the ZC300 Series is easy to integrate, use and manage. Ribbon changing is virtually fool-proof, and a revolutionary hopper design makes loading and unloading cards easier than ever.

Zebra ZC300

Boundless Card Design Options

The ZC300 Series is loaded with advanced card production features. Print what you want, when you want, from just about anywhere – single or dual-sided edge-to-edge monochrome and colour cards, with new ribbons that offer speciality colours and special effects.

Zebra ZC300

Fits Everywhere Design

Even though the ZC300 Series is built for business, it has the consumer good looks required to fit in customer facing areas–from the corporate office to the university to the retail store. And the printer cover lock provides security by preventing theft of card stock and rejected cards.

The Simplest Card Printer on the Planet

Highly Graphical LED/LCD Interface

The ZC300 offers highly-intuitive well-tested icons, animations and text-based messages in your own language, allowing any user to easily understand what the printer needs and how to perform virtually any function — including how to clear a printer jam, fix a ribbon, load a ribbon or cards and more.

A New Ingenious Card Feeder Handles Varying Card Thickness On-the-Fly

The card feeder instantly adjusts to the thickness of each card — no more adjusting for different card stocks.

Painless Plug-and-Play Deployment

The ZC300 is designed to work right out of the box. There’s no time-consuming complicated set-up — just plug it in and start reaping the benefits the day your printer arrives.

Groundbreaking New Driver With a Graphical User Interface

The intuitive interface in the newly-designed driver makes it easier than ever to print cards. Settings are grouped logically into tabs where they are easily accessible with a click. A visual display of your card makes printing simple monochrome and complex color cards equally easy, allowing you to instantly see how your card looks — eliminating the time and cost to repeatedly print test cards.

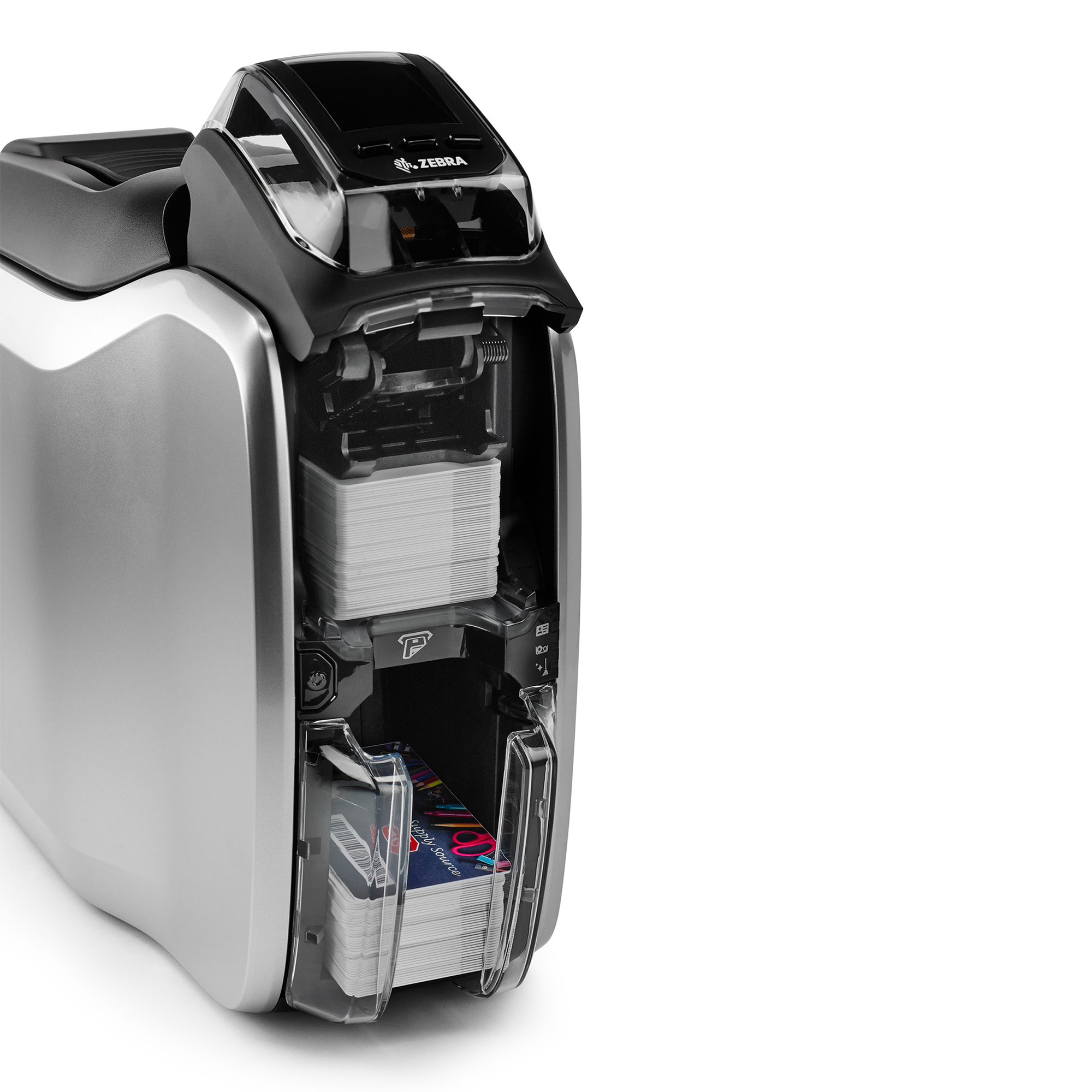

Revolutionary New Hopper Design

The completely re-designed hopper makes loading and unloading cards easier than ever. With the saloon-style output doors, there’s nothing to open — just grab one card or the whole stack of cards. And the input and output hoppers have the same capacity, reducing the need to refill and empty the hoppers.

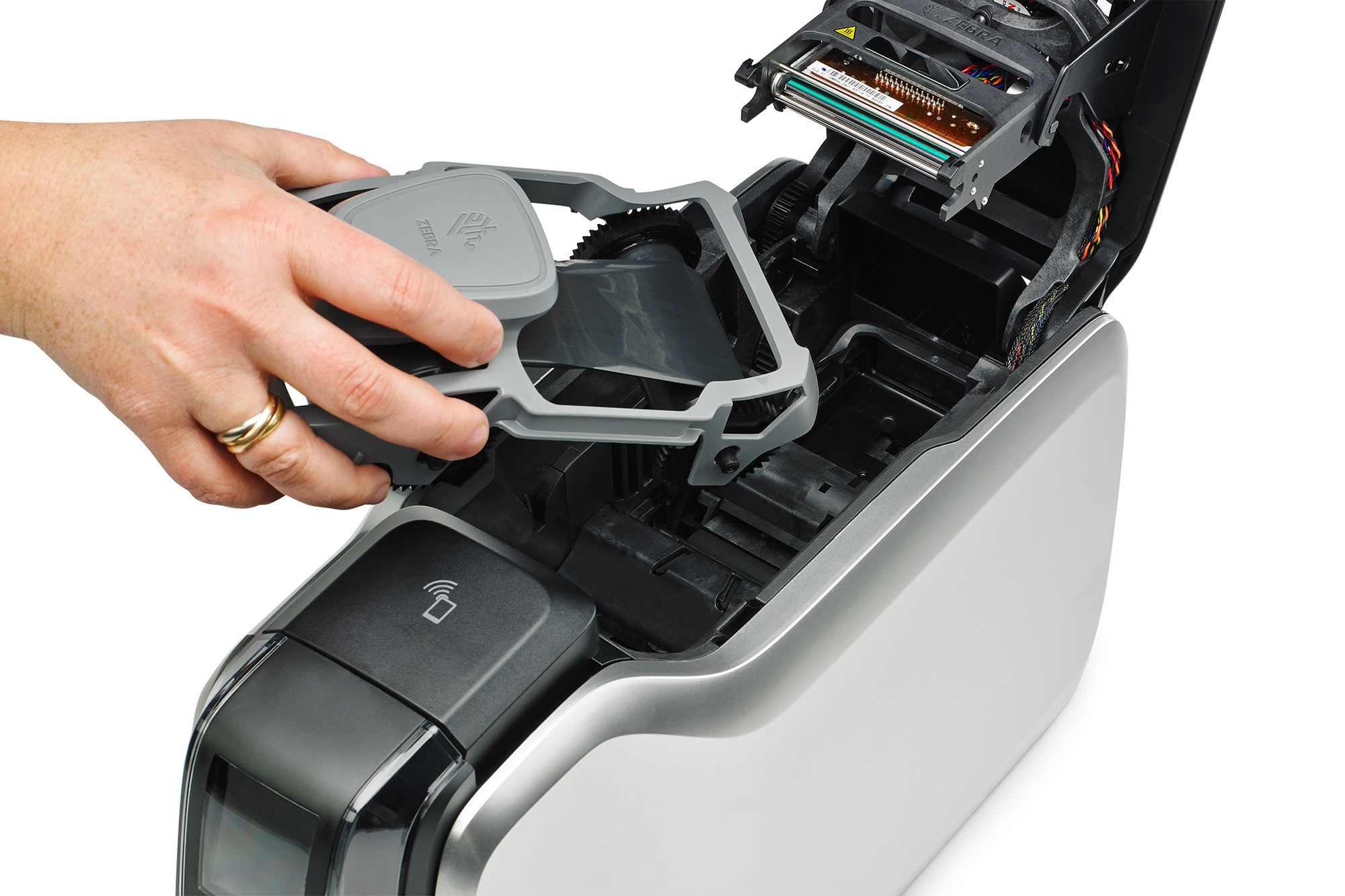

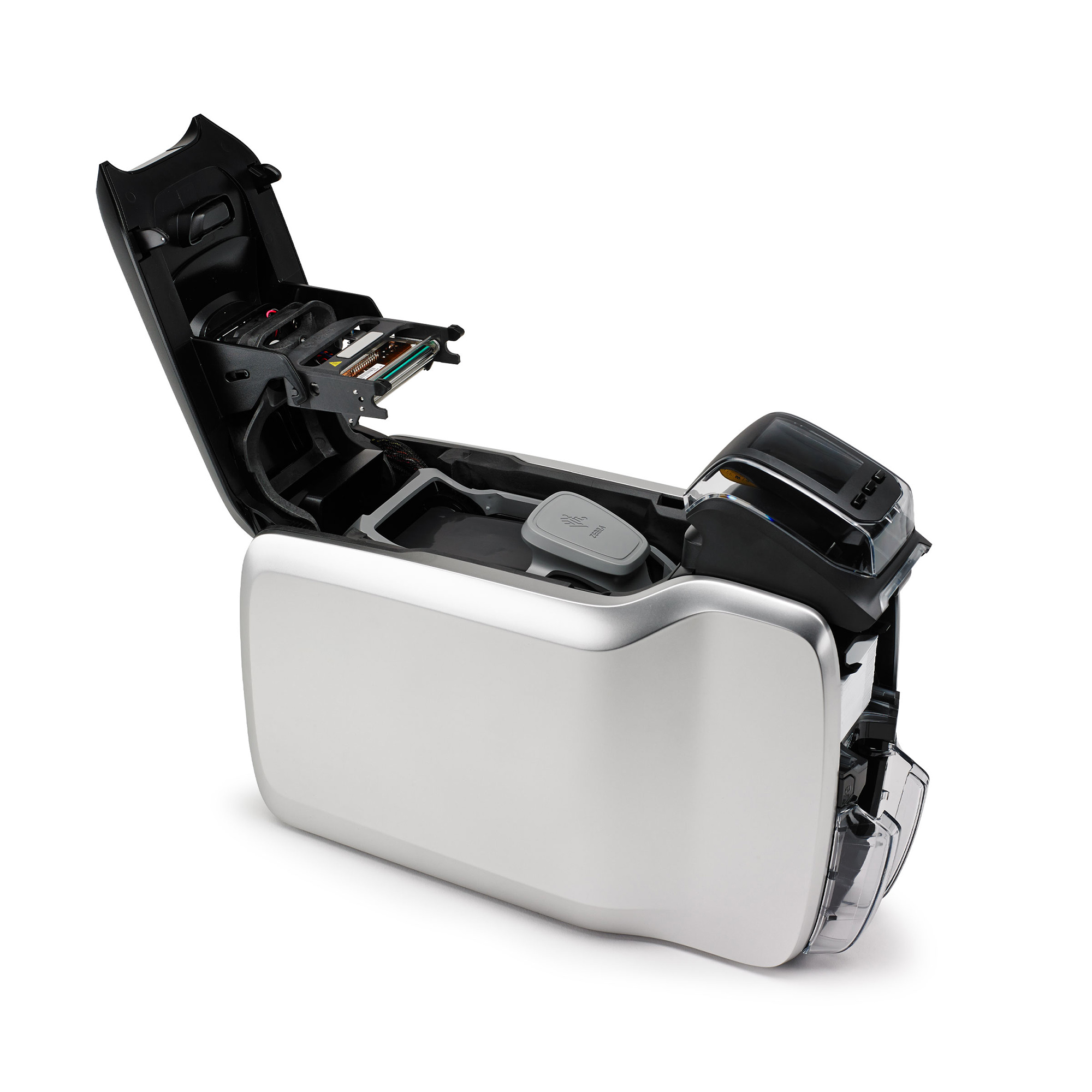

Fool-Proof Ribbon Changing

Changing a ribbon has never been so simple and uncomplicated — no instructions required. The newly designed ribbon door latch unlocks and opens in one motion. The unique door-handle style grip leaves no question about how to remove or insert the ribbon. And with embedded smartchips, you always know when to change the ribbon.

STANDARD FEATURES

• 300 dpi (11.8 dots/mm) print resolution
• 2 GB flash memory
• Image size: 1006 x 640 pixels
• Auto calibration of ribbon
• USB 2.0 and Ethernet 10/100 connectivity
• 100 card capacity auto-adjusting input hopper (30 mil)
• 100 card capacity output hopper (30 mil)
• Manual card feeding capability with LED bezel
• Graphical color LCD
• 3 Tricolor printer status indicator lights
• Kensington® secure lock slot
• Print Touch NFC tag for online printer help and
documentation access
• Printer host authentication
• Data encryption
• Three-year limited warranty on printer and printhead

Printing Specifications

• Dye-sublimation thermal transfer direct to card print method
• Full-color or monochrome printing
• Single and dual-sided printing
• Edge-to-edge printing on standard CR-80 media
Printing throughput (cards per hour) based on batch printing
with USB connectivity. Times may vary depending on the
computer configuration.
• 900 cards/hour single sided monochrome
• 200 cards/hour single-sided YMCKO
• 140 cards/hour dual-sided YMCKOK
• 450 cards/hour dual sided monochrome
Media Specifications
Supplies Specifications: NOTE: The ZC300 printer is designed to work only with Zebra genuine ribbons. Ribbons are included in a simple-to-load recyclable cartridge.
Ribbon Description Cartridge Image Count
YMCKO* 200
YMCKO* 300
YMCKOK* 200
½ YMCKO* 400
½ YMCKOKO2 250
YMCKLL* 200
YMCPKO* 200
SrDYMCKO* 200
KrO* 700
KdO* 700
Black Monochrome* 2000
Black Monochrome 1500
White Monochrome* 1500
Red Monochrome 1500
Blue Monochrome 1500
Gold Monochrome 1500
Silver Monochrome 1500
Ribbon availability may vary by region.
*Zebra intelligent technology automatically detects and
authenticates ribbon
• Cleaning roller is included with each ribbon
• Two available cleaning kit options: your choice of two (2) or
five (5) isopropyl alcohol cleaning cards (1,000 images/card)
Card Compatibility:
NOTE: For optimum print quality and printer performance, use of Genuine Zebra supplies is recommended.
• Card Thickness: 10-40 mil*
• Card Size: CR80 ISO 7810 ID-1 format, CR79*
• Card Material: PVC and PVC composite
• Adhesive back and writable back cards
*Note: Spot color or monochrome printing recommended only on >20 mil thick cards and CR79 cards.
Operating Characteristics
Operating Temp. 59º F to 95º F/15º C to 35º C
Storage Temp. 23º F to 158º F/-5º C to 70º C
Operating Humidity 20% to 80% non-condensing
Media Storage — Temperature: 41º F to 77º F/5º C to 25º C
— Humidity: 35% to 65% non-condensing
Electrical • Auto-switching single-phase AC power
• Operating range: 90-132VAC and 190-264VAC RMS
• Frequency range: 47-63 Hz
• FCC Class A
Physical Characteristics
Dimensions
Single Sided
10.2 in. H x 6.2 in. W x 15.1 in. D
258 mm H x 157 mm W x 383 mm D
Dual Sided
10.2 in. H x 6.2 in. W x 18.4 in. D
258 mm H x 157 mm W x 468 mm D
Weight Single Sided
8.8 lbs (4.0kg)
Dual Sided
9.7 lbs (4.4 kg)
Communications and Interface Capabilities
USB 2.0 Standard
Built-in 10/100 Ethernet Standard
802.11ac Optional
Encoding Options and Specifications
Magnetic stripe encoder — ISO 7811 (new and pre-encoded; tracks 1, 2, and 3; high and low coercivity; stripe down and stripe up with duals-sided printers)3,4
• Combined MIFARE ISO 14443 AandB (13.56MHz) contactless encoder with
1 SAM Slot and optional support for reading iCLASS ISO 15693 and ISO 7816
cards, and ISO 7816 Contact Encoder with EMV level 1 certification, and
PC/SC compliance3, 4
• ISO 7816 Smart Card Contact Station for third party external
contact encoders3
• EPCglobal Gen 2 UHF RFID encoder3, 4
Printer Drivers
Microsoft
Windows
Certified
Windows Server 2008 (32 and 64 bit),
Windows 7 (32 bit and 64 bit)
Windows 8 and Windows 8.1
(32 bit and 64 bit compatible)
Windows Server 2012 (64 bit)
Windows 10 (32 bit and 64 bit)
Windows Server 2016
Windows drivers include:
• Color coded printer status indicators for the operator
• Black panel extraction and controls for specialty
ribbon panels with image preview
• Configuration utility to limit access by operators to change image quality and printer settings
• Advanced printer configuration, security settings
and diagnostics capabilities
Linux Ubuntu 16..X (64 Bit)
Apple MAC OS X 10.13.X (64 bit)
Please see www.zebra.com for an up-to-date listing of supported systems.
Additional Optional Features
• Card flipper for dual-sided printing3
• 10 card reject bin is standard with dual-sided printers3
• Lockable enclosure3
