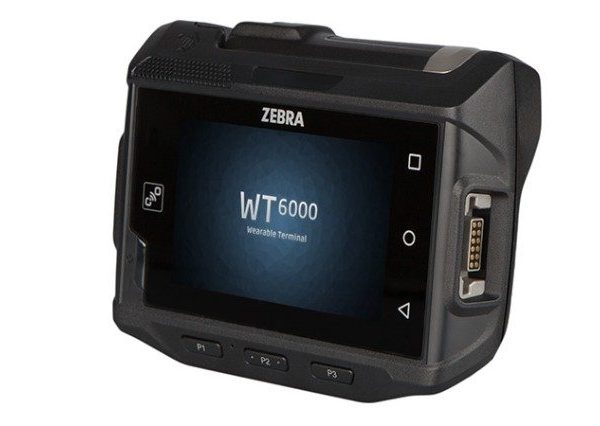

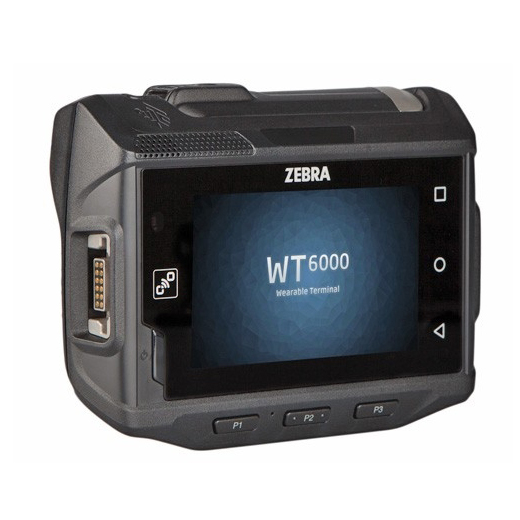

Zebra WT6000 Wearable Computer
THE NEXT GENERATION IN INDUSTRIAL WEARABLE COMPUTERS BRINGS UNPARALLELED COMFORT TO HANDS-FREE MOBILITY
Wearable computers give workers the hands-free mobility they need to boost productivity to a new level. But your workers find today’s wearables uncomfortable — until now. Introducing the WT6000, the new Android wearable computer that sets a new standard for enterprise-class wearability. It’s smaller and lighter than other wearables on the market. With the incredible new mounting system, the WT6000 fits comfortably on every worker, on any size arm. The larger touchscreen provides more real estate to display intuitive graphical Android applications. Integrated NFC allows workers to instantly tap-to-pair with Zebra’s Bluetooth ring scanner, Bluetooth headset and Bluetooth printers at the start every shift, making it easy to deploy a complete hands-free speech-directed solution. And the industrial rugged design delivers maximum uptime in your most demanding environments. The result? Maximum comfort. Maximum durability. Maximum workforce productivity. The WT6000 — putting the wearable in industrial wearable computing.
Compact Size — 27% Lighter and 36% Less Volume
Its breakthrough ergonomic design is smaller than prior generation Zebra wearable devices, bringing unprecedented comfort to industrial wearable computing.
Request for quotation for:
Zebra WT6000 Wearable Computer
- Description
- Specifications
- Video
Description
Rugged and Ready for Your Toughest Environments
The WT6000 is dustproof, sprayproof, built to handle the subzero temperatures in the freezer, as well as 1,000 tumbles. And the new industry-best scratch-resistant Corning® Gorilla® Glass touchscreen fortifies the most vulnerable part of any mobile computer — the display.

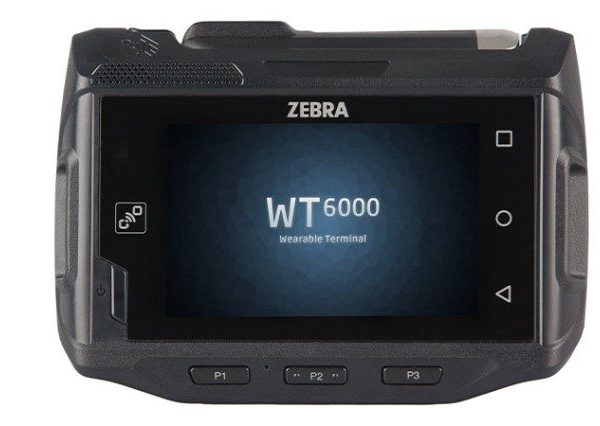

A Larger Display with Multi-Touch Capacitive Touchscreen
Workers get everything they need to maximize productivity — more space to display needed information; input is easy with gloves; it works even when wet; and offers pinch-to-zoom, swipe and all the other familiar behaviors on today’s Android devices.
Mobility DNA Ingredients for Superior Value
the most user-friendly, secure and easy-to-manage enterprise-class Android wearable mobile computer, right out of the box.
Transform “Green Screens” to All-Touch Screens
Zebra’s All-touch TE is pre-loaded and pre-licensed, allowing you to give the front end of your Terminal Emulation apps an intuitive touch interface, automatically — right out of the box.

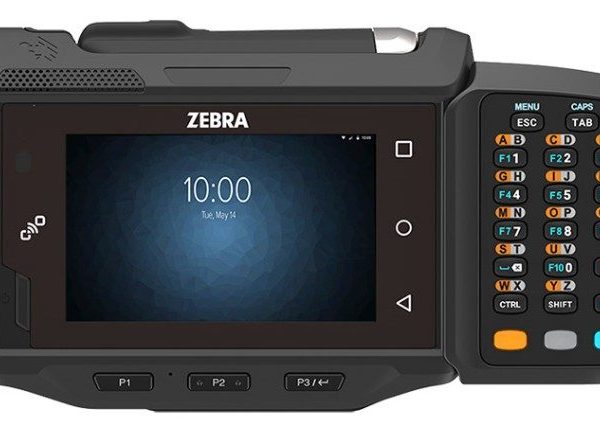

Programmable Softkeys Simplify Your Most Complex Operations
of one softkey. With our advanced haptic technology, your workers won’t even miss the keyboard — you can control when vibration occurs, how many times and for how long, bringing a new level of usability to touchscreen input in the enterprise.
Increase Worker Productivity by 15% with Zebra’s Total Wearable Solutions
Zebra has everything you need to create a powerful hands-free picking solution that allows workers to pick more orders, more accurately, every day. Start by creating a Total Wearable Solution — just pair our RS6000 Bluetooth ring scanner and our HS3100 Bluetooth headset to a WT6000 with a simple tap. Then, leverage a voice directed picking application to quickly and easily create a next-generation multi-modal speech-directed picking application that marries speech with all the data capture capabilities of the Total Wearable Solution. Now, your workers can hear and respond to voice prompts; view information on the WT6000 display; capture barcodes and photos with the ring scanner; print labels and more — all within a single workflow. The result? Workers can increase productivity by 15%, with 39% fewer errors than typical voice-only solutions.*

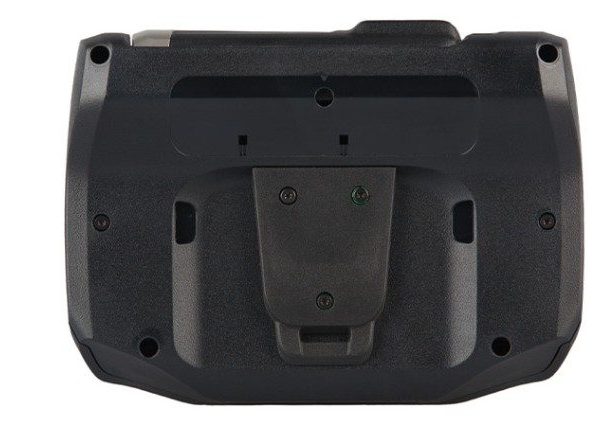

A Groundbreaking New Mounting System for Superior Comfort, Hygiene and Safety
We’ve replaced the standard velcro mount with a best-in-class closure system found in over 25 million products around the world. With micro-adjustability, your workers can get a perfect fit in seconds, customized to their arm — all with just the simple turn of a knob. Pressure points are eliminated and the arm mount stays locked in place, yet can be released in seconds. A new breathable, rubberized and vented silicone sleeve is comfortable, even on bare skin. And the non-absorbent material is easy to wipe down, making it easy to clean at the start and end of every shift.
An Innovative All-in-One Cradle System Completes Your Solution
Traditionally, backroom management of wearable solutions has been cumbersome and expensive, requiring different cradles and power supplies for wearable computers and ring scanners. Zebra’s unparalleled ShareCradle system brings a new level of simplicity to device management. Now you can charge your WT6000 wearable computer and RS6000 ring scanners in a single modular cradle, without removing the batteries. And the WT6000 and RS6000 share the same battery, greatly simplifying battery management.
Physical and Environmental Characteristics
| Dimensions | 4.7 in. L x 3.5 in. W x .7 in. D and 1.3 in. (D) local to the battery 121 mm L x 89 mm W x 20 mm D and 34 mm (D) local to the battery |
| Weight | 8.7 oz./245 g with standard battery 11.4 oz./322 g with extended battery |
| Display | WVGA (800 x 480 pixels); 3.2 in. diagonal; transflective LCD Display and IPS Technology; 16.7 Million (24-bit) color support; 400+ NITs |
| Touchpanel | Corning Gorilla Glass 3; multi-touch projected capacitive; fingertip (bare or gloved) input; conductive stylus supported |
| Keypad Options | On-screen keypad; three programmable function keys |
| Power | Standard Battery - 3350 mAh capacity; Extended Battery - 5000mAh, PowerPrecision+; Li-Ion Battery Pack; Backup power - SuperCap technology for main battery hot swap |
| Vibration; audible tone; multi-color LED | |
| Pairing | NFC Tag: Tap-to-Pair; used to simplify the pairing process Bluetooth: Scan-to-Pair; by displaying a barcode on screen and a peripheral device may connect by scanning the on screen barcode |
Performance Characteristics
| Processor | Quad-Core 1 GHz processor |
| Operating System | Android Lollipop 5.1, Android Nougat 7.1 Both with Mobility Extensions (Mx) |
| Memory | 4GB Flash (SLC); 1GB RAM (Android L) 8GB Flash (SLC); 2GB RAM (Android N) |
| Data Capture Options | • SE965 1D standard range scan engine supported peripheral ring scanner RS4000 • SE4710 1D/2D imaging engine supported peripheral ring scanner RS5000 • SE4750-SR or MR; standard or medium range next generation omni-directional 1D/2D imaging engine supported peripheral ring scanner RS6000 • SE4500-SR or DL; Standard or Driver’s License omni-directional 1D/2D imaging engine supported peripheral ring scanner RS507 |
| Communications | USB (Host and Client) |
| Bluetooth | Bluetooth 4.1 (Bluetooth Smart technology); Class 1 and Class 2 |
| NFC | Multiprotocol NFC reader |
| Wireless LAN Radio | IEEE 802.11a/b/g/n/ac |
| Data Rates | 5GHz: 802.11a/n — up to 135 Mbps; 802.11ac — Single-stream and dual-stream solution with data rates up to 433.3 and 866.7 Mbps 2.4GHz: 802.11b/g/n — up to 72.2 Mbps (one stream) 144.4 Mbps (dual stream) |
| Operating Channels | Channels 36 - 165 (5180 - 5835 MHz); Channels 1 - 13 (2412 - 2472 MHz) (Actual operating channels/ frequencies depend on regulatory rules and certification agency) |
| Security and Encryption | WEP, WPA - TKIP, WPA2- TKIP, WPA2-AES EAP-TTLS/PAP, EAP-TTLS/MSCHAPv2, PEAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, TTLSMSCHAP, EAP-TLS, EAP-FAST (MSCHAPv2 and GTC), LEAP VPN functionality (L2TP, PPTP and IPSec) |
| Multimedia | Wi-Fi Multimedia™ (WMM) |
| Certifications | 802.11n, 802.11ac, CCXv4 |
| Fast Roam | PMKID caching, Cisco CCKM, OKC, 802.11r |
| Operating Temp. | -22°F to 122° F/-30°C to +50°C |
| Storage Temp. | -40°F to 158° F/-40°C to +70°C |
| Humidity | 5 to 95% non-condensing |
| Thermal Shock | -40° F to 158° F/-40° C to 70° C rapid transition |
| Drop Specification | Multiple 4 ft. drops to concrete across the temperature range |
| Tumble Spec | 1,000 tumbles @ 0.5 m |
| Sealing | IEC 60529: IP65 |
| Vibration | Sine 5-2000 Hz, 4g peak, 1 hour per axis Random 20-2000 Hz, 6g RMS or 0.04g2/Hz, 1 hour per axis |
| Electrostatic Discharge (ESD) | +/-20kV air discharge, +/-10kV contact discharge, +/-10kVdc indirect discharge. |
Voice and Audio
| Voice and Audio | Integrated speaker; integrated microphone; mono wired headsets with a microphone and push-to-talk button; Bluetooth wireless headset support |
| Push-to-Talk | PTT (client included); wired headset support; PTT supports headset and speakerphone mode |
| Speech Directed Picking | Compatible with 3rd party Voice Directed Picking (VDP) clients |
Enterprise Software
| Applications | PTT Express Client; All-touch Terminal Emulation (TE) |
| Staging/MDM | SOTI MobiScan; Airwatch; StageNow |
| Tools | App Gallery; Enterprise Browser; Enterprise Diagnostic (B2M) |
| Development | EMDK available through Zebra Support Central Web site |
| Data Capture | DataWedge |
| Utilities | Diagnostics — RxLogger; Enterprise Home Screen |
Warranty
| Subject to the terms of Zebra’s hardware warranty statement, the WT6000 is warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment. For complete warranty statement, please visit: http://www.zebra.com/warranty |
