Description

INDUSTRIAL-CLASS POWER IN AN ULTRA-LOW PROFILE CASE

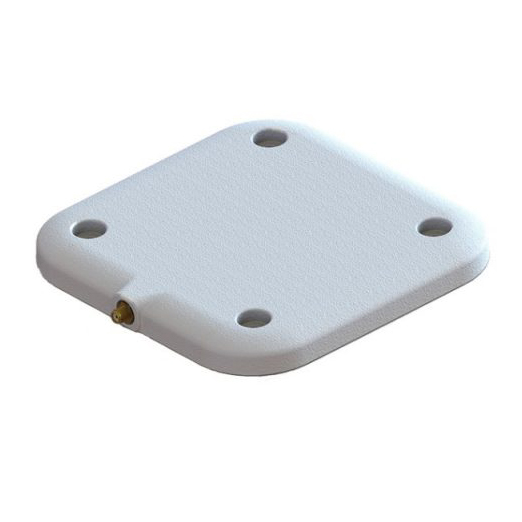

Zebra RFID AN520 is an efficient antenna helps deliver high-throughput, high capacity communication of EPC-compliant RFID tag data. The rugged AN520 is suitable for use in outdoor shopping areas, receiving dock doors, ceilings and walls to create superior read zones.

SLIM AND POWERFUL

The ultra-low profile antenna is designed to be sleek and discreet enough to be at home in any business setting but rugged enough for outdoor industrial environments.

PAIR WITH OUR SERVICES FOR PLANNING AND MANAGEMENT

To help you seamlessly and successfully integrate your RFID Antennas into your environment, Zebra offers a complete suite of services that span the entire solution lifecycle.

The AN520 RFID antenna is suitable for use in a variety of indoor and outdoor environments that require a small form factor. The outer housing is designed to be sleek and discreet enough to be integrated into any business but rugged enough for outdoor industrial environments. The versatile flush mount blends into any location.

PHYSICAL CHARACTERISTICS

Polarization RHCP (Right Hand Circular Polarized)

Dimensions 150 mm x 150 mm x 14 mm/ 5.9 in. x 5.9in x 0.55 in.

Connector SMA female

Connector Location Side connector

Mounting Options Flush mount

Weight 0.25 kg/0.55 lbs

Casing/Materials UV-Resistant ABS

Frequency Ranges ETSI: 865-868 MHz FCC: 902-928 MHz

Gain 5.5 dBiC typical

VSWR (Return Loss) 1.4 typical

Front to Back Ratio -10 dB

3 dB Beam Width 115° in both planes

Maximum Power 3 Watts

Axial Ratio 2 dB typical

Operating Temperature -40° to +65°C/-40° to +149°F

Storage Temperature -40° to +65°C/-40° to +149°F

IP Sealing IP68

Vibration IEC60068-2-64

Humidity 72 Hours @ 85° C relative humidity
