Description

BUILT TO SURVIVE THE MOST DEMANDING ENVIRONMENTS

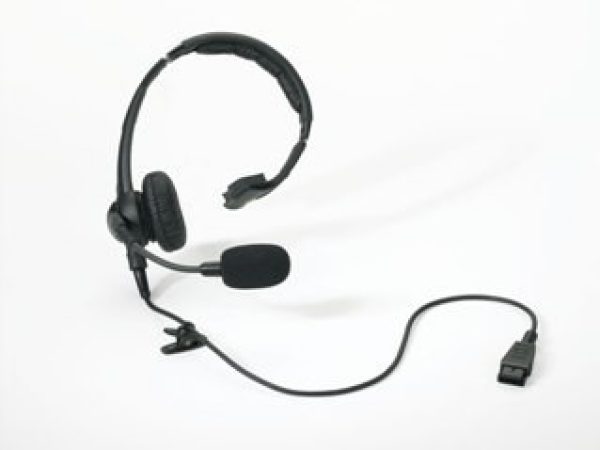

Whether your workers spend the day traveling back and forth between a warehouse freezer and the heat of a loading dock on a hot summer day, or are out on the tarmac loading and unloading trucks in snow, sleet and rain, the RCH51 has what it takes to ensure reliable operation. The RCH51 passes Zebra’s stringent mechanical design tests for both stress and endurance. The headset is built to survive the stress of multiple 6 ft./1.8m drops across the entire operating temperature range. An exceptionally rugged strain relief design provides superior cable bend tolerance, ensuring dependable operation even in extreme heat and cold. In the endurance test, the headset continued to perform even after 1000 consecutive 1.64 ft./0.5 m hits in Zebra’s tumble drum. IP67 environmental sealing allows the headset to thrive in dusty and wet environments.

CRYSTAL CLEAR VOICE QUALITY FOR MAXIMUM EMPLOYEE PRODUCTIVITY
The success of voice-directed applications is dependent upon the acoustic performance of the headset. Ambient noise can prevent workers from hearing an instruction — or can force workers to repeat responses. The RCH51 is loaded with features that ensure superior acoustic performance by not only protecting the technology inside the headset, but also addressing the environmental challenges in noisy environments. Sealed audio components protect the speaker and microphone from moisture that would otherwise create distortion and degrade the audio quality. Even if other workers are nearby, the microphone provides superior noise canceling technology, filtering out background sounds and eliminating the potential for your application to receive multiple voice-inputs.

DESIGNED FOR COMFORT, SAFETY AND HYGIENE

The lightweight ergonomic design of the RCH51 eliminates pressure points, providing full shift comfort. In addition, the
ability to change the microphone windscreen and speaker ear pad as well as the possibility to wipe down the headset
at every shift change protects the health of your workforce. Finally, a quick disconnect feature allows workers to
rapidly separate the mobile computer and the headset, improving worker safety.

Meets heavy industrial specifications for drop, tumble and sealing — including an industry leading tumble test plus IP67 sealing
Premier rugged specifications enable dependable yearround use in nearly any environment, including the ability to withstand exposure to heat, cold, humidity, dust, condensation, drops and bumps

Noise canceling waterproof microphone
Provides superior noise canceling technology — capable of filtering out
ambient noise that is only inches away; designed to recognize sounds arriving at the front of the microphone only, isolating and filtering out sounds arriving from the sides and rear

Industrial-grade connector on many Zebra mobile computers couple to quick disconnect feature on headset for worker convenience and safety
Eliminates the voice quality issues common with barreljack connectors, yet ensures worker safety

User replaceable microphone windscreen and ear pad
Protects employee health by preventing the spread of germs in the workplace

Field replaceable head band pad and temple pad
Extends product lifecycle — no need to discard the headset due to everyday
wear; ensures the same degree of comfort from the first day of purchase to the last day of service

Adjustable one-size fits- all headband
An almost two-inch adjustment range accommodates any size worker; the ability to standardize on a single headset simplifies mobility — there is only one type of headset and accessories to purchase and manage

Universal design
Flexibility to choose different types of Zebra mobile computers for different types of workers — from full size rugged industrial designs to pocketable Enterprise Digital Assistants (EDAs)

PHYSICAL CHARACTERISTICS
Weight: 3.9 oz/111 g with headset cable (but without adapter cable)
Power Rating: 1 Vrms and 1 KHz at 25° C

USER ENVIRONMENT
Zebra Mobile Computer Compatibility:
Wearables: WT41N0, WT41N0 VOW
Rugged EDAs: MC55, TC70
Rugged Handheld Mobile Computers: MC2100, MC3190,MC3200; MC9190, MC9200, MC9500-K

Drop Specification: Multiple 6 ft./1.8 m drops to concrete across the operating temperature range
Tumble Specification: 500 1.64 ft./0.5 m tumbles (1,000 hits) at room temperature
Operating Temperature: -22° F to 122° F/-30° C to 50° C
Storage Temperature: -40° F to 122° F/-40° C to 50° C
Sealing: IP67 sealing
Humidity: 95% condensing

ACOUSTIC FEATURES
Audio: High performance noise cancelling microphone with noise immunity of >10dB for high noise environments
Voice Recognition: Can work with all Zebra devices (with headset jacks) running voice recognition engines and text-to-speech engines for voice-directed applications; also works well with VoIP applications

PERIPHERALS AND ACCESSORIES
Adapter Cables: Adapter to standard 2.5mm jack
Adapter to WT41N0 connector
Adapter to MC3190/3200 connector
Adapter to TC70 connector
Adaptor to MC9500 connector
Y Training cable to attach two headsets to one mobile computer
Ear Pads: Silicon-teflon treated foam ear pad for speaker (Bag of 5)
Windsock: Silicon-teflon treated foam pad for microphone (Bag of 5)
Headband Pad: Headband Pad replacements (Bag of 5)
Temple Pad: Temple Pad replacements (Bag of 5)
