Description

Best-In-Class Scanning Performance and Scanning Range

This linear imager delivers an extraordinary scanning range as fas as 56 ft./17.1m, enabling your workers to scan 1D printed barcodes 26 percent farther than the prior generation laser model. Your workers only need one scanner to read barcodes on the uppermost shelves of your warehouse racks and in hand, including extra-wide codes just a hands-length away. And with the advanced algorithms that have made Zebra the leader in barcode scanning, your workers can capture virtually any barcode in any condition – including under shrinkwrap, damaged, dirty or poorly printed. The result? Workers can capture virtually all 1D barcodes as fast as they can pull the trigger for first-time every time scanning – and extraordinary productivity.

Ultra-Rugged – The Most Indestructible Design In Its Class

The LI-3608-ER/LI-3678-ER is our most rugged scanner yet, with the highest drop, tumble and sealing specification in its class. The LI3608-ER/LI3678-ER is built to survive an 8 ft./2.4m drop to concrete – 23 percent more durable than any other scanner in this class. The LI3608-ER/LI-3678-ER operates reliably after 5,000 tumbles, stimulating the real-world tumbling that occurs with a drop. Both models are dust proof, spray proof and waterproof to IP67 – they can be sprayed down with jetting water and even submersed in water.

Easy Management with Our Complimentary Industry-Best Tools

Remotely configure scanners, upgrade firmware, format data properly for your back end, and monitor PowerPrecision+ battery statistics and more with 123Scan and Scanner Management Service (SMS)

Intuitive Aiming Pattern for Ultra-Simple Scanning At Any Distance

A new aiming pattern provides fool-proof aiming for codes in hand – and on the uppermost warehouse racks.

Ready For The Freezer

The LI3608-ER and LI3678-ER are built from the group up to handle extreme cold. Their unique plastics, cables and components are designed to handle freezing temperatures without becoming brittle – making these scanners ideal for use in freezers and outdoor yards.

A Bluetooth Model In A Class Of Its Own For Superior Cordless Freedom

Bluetooth 4.0 (Low Energy) provides lightning fast wireless communication and maximum energy efficiency.

Our Zebra Wi-Fi Friendly Mode eliminates the wireless interference that Bluetooth devices can create in your Wi-Fi environment.

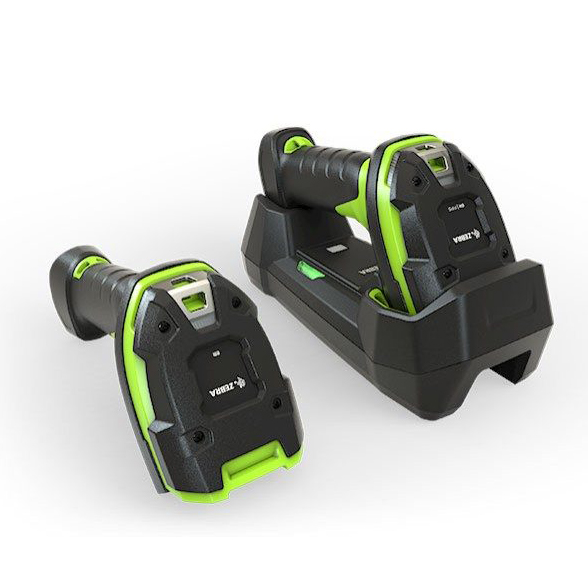

The ‘go anywhere’ rugged cradle offers superior versatility. The LI-3678-ER is the only scanner in its family to offer a cradle with IP65 sealing. And its industrial charging contacts withstand 250,000 insertions.

The first-in-its-class battery ‘charge gauge’ and Bluetooth status LED make it easy to monitor battery power as well as Bluetooth connectivity.

The PowerPrecision+ battery delivers the ultimate in battery power and management. You get more than with competitive models in this class – more than 100,000 scans per charge, so workers can scan more items over a longer period of time. And you get visibility into a wealth of battery health-related data, including charge cycles consumed, current battery status ad a State of Health meter, which identifies if batteries are healthy and holding a full charge or ready for retirement.

Three Flexible Feedback Modes

Mix and match the feedback modes that are ideal in your environment – vibration, red and green LEDs located in an area where they are always easy to see, plus the traditional loud beep tone.

Instantly Connect To Your Industrial Ethernet Network

Zebra’s Network Connect for Automation delivers a seamless connection between LI-3608-ER/LI3678-ER scanners and a manufacturer’s Industrial Ethernet network without the need for third party conversion equipment. The solution eliminates vulnerability points, improves security, reduces complexity and is compatible with every Zebra 3600 Series scanner.

DataCapture DNA

Zebra’s DataCapture DNA is a technology platform of highly intelligent firmware, software, utilities and apps exclusively engineered for Zebra scanners. Leveraging more than 35 years of Zebra’s industry expertise, DataCapture DNA delivers innovations that give our best-in-breed imagers greater intelligence and simplicity. When combined with the unstoppable performance found in every 3600 series Ultra-rugged scanner, DataCapture DNA turns Zebra’s 3600 Series scanners into powerful tools that help to resolve tomorrow’s data capture challenges today- and help your workers get more done each day.

PHYSICAL CHARACTERISTICS
Dimensions
Corded: 7.3 in H x 3.0 in. W x 5.2 in. D | 18.5cm H x 7.6 cm W x 13.2 cm D
Cordedless: 7.3 in H x 3.0 in. W x 5.6 in. D | 18.5cm H x 7.7 cm W x 14.2 cm D
Weight
Corded: 11.5 oz/327 gm
Cordless: 15.0 oz/424 gm
Input Voltage Range
Host Powered: 4.5 VDC min., 12.6 VDC max.
External Power Supply: 11.4 VDC min., 12.6 VDC max.
Operating Current LI3608-ER (Corded): 250 mA (RMS typical)
Standby Current LI3608-ER (Corded): 110 mA (RMS typical)
Color Industrial Green
Supported Host Interfaces USB, RS232, Keyboard Wedge, Industrial Ethernet: EtherNet/IP, Profinet, Modbus, TCP & Std TCP/IP
Battery PowerPrecision+ 3100 mAh Li-Ion rechargeable battery
User Indicators Direct decode indicator; LEDs; Beeper; Vibration

PERFORMANCE CHARACTERISTICS
Scan per Full Charge 100,000+
Illumination 660 nm LED
Aimer 655 nm Laser
Imager Field of View 30.7° (H)
Minimum Print Contrast 25% minimum reflective difference
Skew/Pitch/Roll Skew: +/-65° | Pitch: +/-65° | Roll: +/-45°

DECODE CAPABILITIES
1D Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, 12 of 5, Korean 3 of 5, GS1DataBar, Base 32 (Italian Pharma)

USER ENVIRONMENT Operating Temperature
Corded: -22°F to 122°F/ -30°C TO 50°C
Cordless: -4°F to 122°F/ -20°C TO 50°C
Storage Temperature -40°F to 158°F/ -40°C TO 70°C
Humidity 5% to 95% non-condensing
Drop Specification Withstand multiple 8.0 ft./2.4m drops to concrete
Tumble Specification 5000 tumbles @ 3.3ft. (1m)
Sealing Scanner: IP65 and IP67 | FLB cradle: IP65
ESD Per EN61000-4-2, +/- 25KV air discharge, +/-10KV direct discharge, +/-10KV indirect discharge
Ambient Light Immunity 0 to 10,000 Foot Candles / 0 to 107639 Lux

UTILITIES AND MAINTENANCE
123Scan Program scanner parameters, upgrades firmware, provides scanned barcode data and prints reports.
Scanner SDK Generates a fully-featured scanner application, including documentation, drivers, test utilities and sample source code.
Scanner Management Service (SMS) Remotely manages your Zebra scanner and queries its asset information.
Network Connect Seamlessly connect 3600 Series scanners directly to your Industrial Ethernet network with no additional conversion equipment.

WIRELESS CONNECTIVITY
Bluetooth Radio Bluetooth Class 1, Version 4.0 (LE), Serial Port (SPP) and HID profiles
Data Rate 3 Mbit/s (2.1 Mbit/s) for Classic Bluetooth | 1 Mbit/s (0.27 Mbit/s) for Low Energy
Radio Range Direct line of sight in open air: Class 1: Minimum 300 ft. (100.0M); Class 2: Minimum 30 ft. (10.0m)
REGULATORY
Environmental RoHS EN 50581:2012
Electrical Safety EU Safety: EN 60950-1:2006 + A11:2009 +A1; 2010 + A12: 2001 + AC 2011 + A2:2013; International Safety: IEC 60950-1:2005 + A1: 2009+ A2: 2013 US/Canada Safety: UL 60950-1, second edition, CAN/CSA-C22.2 No. 60950-1-07
Laser/LED Safety Complies with 21 CFR1040.10 and 1040.11 except for deviations pursuant to Laser Notice NO. 50, dated June 24, 2007 and IEC/EN 60825-1:2007 and/or IEC/EN 60825-1:2014
EMI/RFI IT Emissions: EN 55022:2010/AC: 2011 (Class B); IT Immunity: EN 55024: 2010; Heavy Industrial: EN 61000-6-2:2005/AC:2005; Harmonic Current Emissions: EN 61000-3-2:2006 + A1:2009 + A2:2009 (Class B); Voltage Fluctuation and Flicker: EN 61000-3-3:2013; Medical Electrical Equipment: EN 60601-1-2:2007/AC: 2010, IEC 60601-1-2:2007 (Modified); Radio Frequency Devices: 47 CFR Part 15, Subpart B, Class B; Digital Apparatus: ICES-003 Issue 5, Class B
