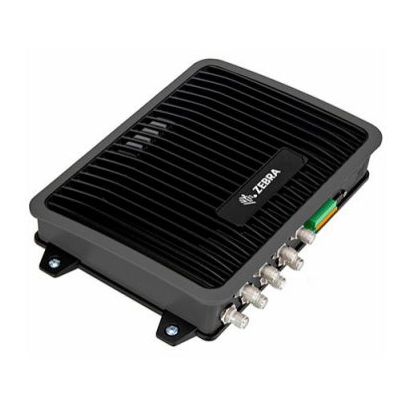

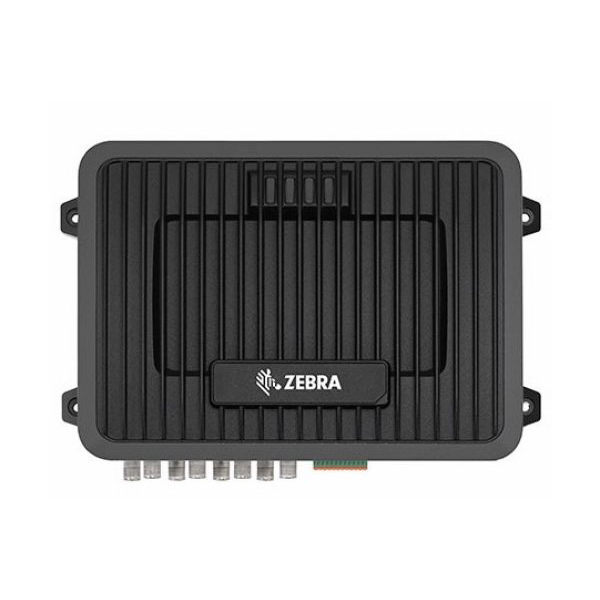

Zebra FX9600 Fixed RFID Reader
Zebra FX9600 RFID Reader is the Top of the line performance for high volume, rugged environments, RFID tracking for inventory, work in progress, logistics, attendance, and asset tracking.
Request for quotation for:
Zebra FX9600 Fixed RFID Reader
- Description
- Specifications
Description
Zebra FX9600 RFID Reader TOP-OF-THE-LINE PERFORMANCE FOR HIGH-VOLUME, RUGGED ENVIRONMENTS

To achieve maximum visibility and efficiency in your most rugged environments, your operation needs an RFID reader that can keep up with the high volume and wide variety of pallets, cases and tagged items that go in, out and through your warehouse and dock doors each day.
Now, get the performance and features you need to handle it all with the FX9600 — without breaking the bank. With industry-leading read rates, exceptional read accuracy and superior RF sensitivity, the FX9600 has what it takes to automate nearly every aspect of your inventory management — from receiving and putaway to picking and shipping — without errors or bottlenecks. The FX9600 is the industry-best performance your operation needs at a price you can afford.
- TOP-OF-THE-LINE PERFORMANCEWhen it comes to performance, the FX9600 delivers the best. The exceptionally high RF sensitivity delivers the greatest accuracy and longer read ranges, even in dense RF environments with challenging materials. And with the most power in its class, you can support the highest throughput, as well as all of your sophisticated software applications.
- UNRIVALLED DEPLOYMENT SIMPLICITYHost embedded applications directly on the FX9600, reducing deployment time, cost and complexity. With support for PoE and PoE+, there’s no need to run power drops to each reader — and with PoE+ or a 24V power supply, even long cable runs won’t reduce available RF power.
- THE INDUSTRY’S BEST TCODesigned for tough environments, the rugged FX9600 can handle it all — damp dusty work areas, extreme heat and subzero temperatures. And with the eight-port model, you can cover more dock doors and portals with fewer readers, significantly lowering your investment, deployment and management costs.
Physical Characteristics
| Dimensions | 10.75 in. L x 7.25 in. W x 2.0 in. D 27.3 cm L x 18.4 cm W x 5.0 cm D |
| Weight | Approx. 4.4 lbs/2.13 kg |
| Housing Material | Die-cast aluminum, meets IP53 standards |
| Visual Status Indicators | Multicolor LEDs: Power, Activity, Status and Applications |
RFID Characteristics
| Max Receive Sensitivity | -86 dBm monostatic |
| Air Protocols | ISO 18000-63 (EPC Class 1 Gen 2 V2) |
| Frequency (UHF Band) | Global Reader: 902 MHz - 928 MHz (Also supports countries that use a part of this band), 865 MHZ - 868 MHz US (only) Reader: 902 - 928 MHz |
| Transmit Power Output |
0dBm to +33.0dBm: PoE+, 24V External DC, Universal 24 VDC Power Supply; 0dBm to +31.5dBm: PoE, 12V External DC (4-port-models only), 24V External DC, Universal 24 VDC Power Supply |
Connectivity
| Communications | 10/100 BaseT Ethernet (RJ45); USB Host and Client (Type A and B)*; Serial (DB9) |
| General Purpose I/O | 4 inputs, 4 outputs, optically isolated (Terminal Block) |
| Power Supply | POE (802.3af) POE+ (802.3at) +24V DC (UL Approved) |
| Antenna Ports | FX9600-4: 4 monostatic ports; (Reverse Polarity TNC) FX9600-8: 8 monostatic ports; (Reverse Polarity TNC) |
Environmental
| Operating Temp. | -4° to +131° F/-20° to +55° C |
| Storage Temp. | -40° to +158° F/-40° to +70° C |
| Humidity | 5-95% non-condensing |
| Sealing | IP53 |
Hardware, OS and Firmware Management
| Processor | Texas Instruments AM3505 (600 MHz) |
| Memory | Flash 512 MB; DRAM 256 MB |
| Operating System | Linux |
| Firmware Upgrade | Web-based and remote firmware upgrade capabilities |
| Management Protocols | RM 1.0.1 (with XML over HTTP/HTTPS and SNMP binding); RDMP |
| Network Services | DHCP, HTTPS, FTPS, SFPT, SSH, HTTP, FTP, SNMP and NTP |
| Network Stack | IPv4 and IPv6 |
| Security | Transport Layer Security Ver 1.2, FIPS-140 |
| API Support | Host Applications — .NET, C and Java EMDK Embedded Applications — C and Java SDK |
Regulatory Compliance
| Safety | UL 60950-01, UL 2043, IEC 60950-1, EN 60950-1 |
| RF/EMI/EMC | FCC Part 15, RSS 210, EN 302 208, ICES-003 Class B, EN 301 489-1/3 For Malaysia: 919-923 MHz |
| SAR/MPE | FCC 47CFR2:OET Bulletin 65; EN 50364 |
| Other | ROHS, WEEE |
Environmental Compliance
| Environment • RoHS Directive 2011/65/EU; Amendment 2015/863 • REACH SVHC 1907/2006 |
