Description

Capture it all — from direct part marks to 1D/2D and wide 1D paper barcodes

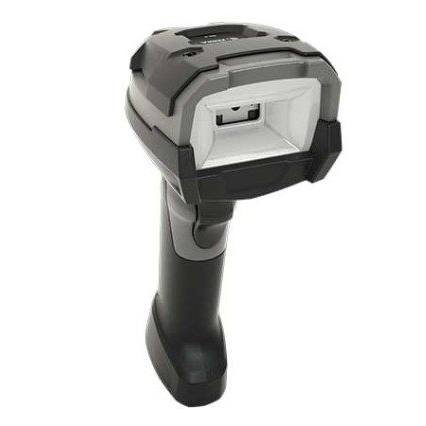

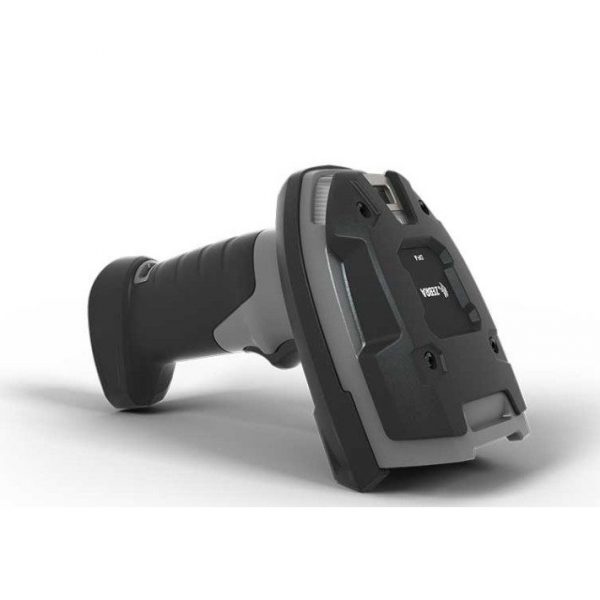

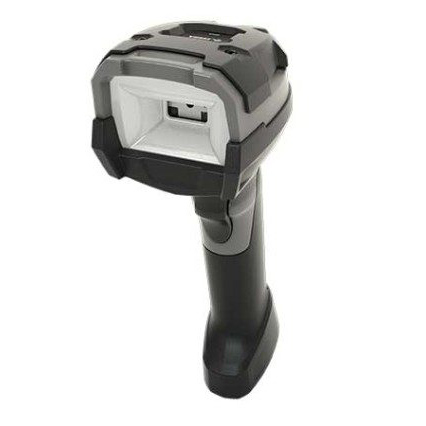

The DS3608-DPA/DS3678-DPA can capture virtually every type of direct part mark (DPM) including laser etch, ink mark, chemical etch, inkjet mold, cast, thermal spray and dot peen. In addition, the same scanner can capture barcodes printed on labels in virtually any condition — including damaged, dirty, poorly printed or under shrinkwrap — as well as 4-inch wide 1D barcodes found on picklists, carton labels and packages. This dual functionality provides excellent value: you can use the same scanner on the
production line for end-to-end track and trace as well as throughout the plant floor and warehouse.

Ultra-rugged — the most indestructible design in its class
The DS3608-DPA/DS3678-DPA is our most rugged scanner yet, with the highest drop, tumble and sealing specification in its class. The DS3608-DPA/DS3678-DPA is built to survive an 8 ft./2.4 m drop to concrete — 23 percent more durable than any other scanner in this class. The scanners operate reliably after 5,000 tumbles, simulating the real-world tumbling that occurs with a drop. Both models are dust proof, spray proof and waterproof to IP67 — they can be sprayed down with jetting water and even be submersed in water.

Advanced illumination system
Advanced illumination provides the multiple lighting effects required to capture marks on any type of surface — including reflective, irregular and curves as well as low and high contrast marks. The built-in diffuser provides the indirect light required to capture marks printed on very shiny and reflective surfaces. The proprietary design of the diffuser also directs additional lighting to the edges of barcodes marked on a curved surface, enhancing the image for easier decoding. Finally, a glancing direct light
mode provides the bright light required to successfully read low contrast barcodes marked on any type of surface, including challenging polished materials.

Easy management with complimentary industry-best tools
Remotely configure scanners, upgrade firmware, format data properly for your back end and monitor PowerPrecision+ battery statistics and more with 123Scan and Scanner Management Service (SMS).

Connect to your Industrial Ethernet network without third-party converter boxes
Zebra’s Network Connect for Automation delivers a seamless connection between DS3608-DPA/DS3678-DPA scanners and a manufacturer’s Industrial Ethernet network without the need for third party conversion equipment. The solution supports a wide range of programmable logic controller (PLC) vendors, including support for EtherNet/IP for Rockwell Automation, PROFINET for Siemens, as well Modbus TCP and standard TCP/
IP. By streamlining the connection between scanners and the PLC, Network Connect eliminates vulnerability points, improves
security and reduces complexity.

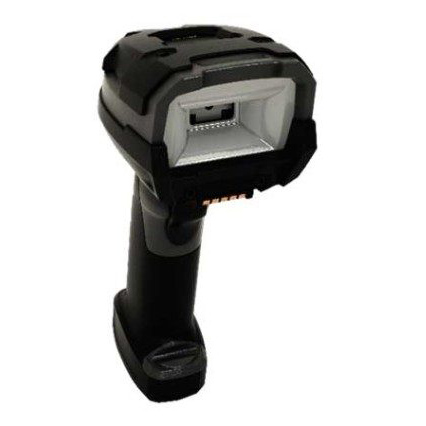

A Bluetooth model in a class of its own for superior cordless freedom
Bluetooth 4.0 (Low Energy) provides lightning fast wireless communication and maximum energy efficiency. Our Zebra Wi-Fi Friendly Mode eliminates the wireless interference that Bluetooth devices can create in your Wi-Fi environment.

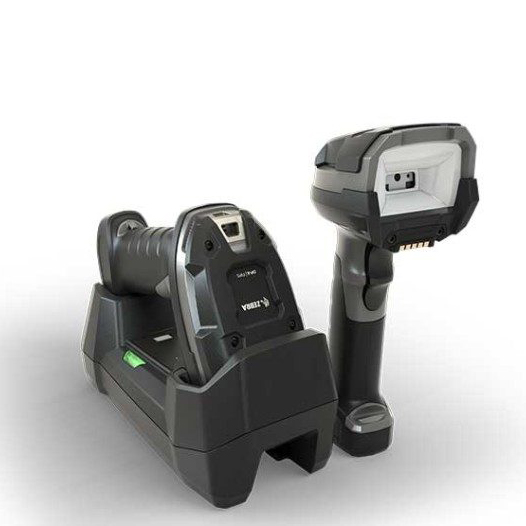

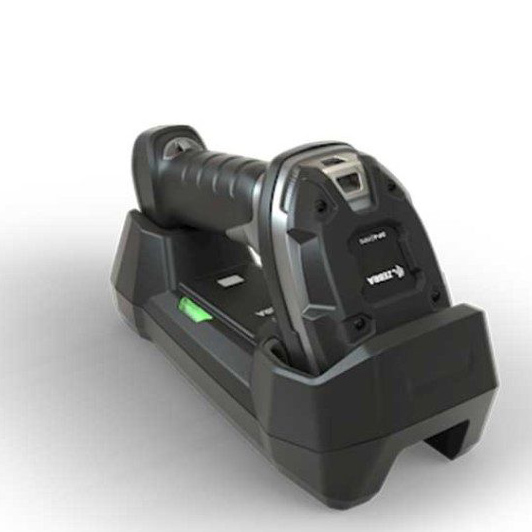

The ‘go anywhere’ rugged cradle offers superior versatility and durability. The DS3678-DPA is the only scanner in its class to offer a cradle with IP65 sealing. And its industrial charging contacts withstand 250,000 insertions.

The first-in-its-class battery ‘charge gauge’ and Bluetooth status LED make it easy to monitor battery power as well as Bluetooth connectivity. The PowerPrecision+ battery delivers the ultimate in battery power and management. You get more than three times the amount of scans per charge than with competitive models in this product class — more than 100,000 scans per charge, so workers can scan more items over a longer period of time. You also get visibility into a wealth of battery health-related data, including charge cycles consumed, current battery status and a State of Health meter, which identifies if batteries are healthy and holding a full charge or ready for retirement.

Extreme temperature rating
Built to handle extreme cold, heat and humidity, you can use the DS3608-DPA and DS3678-DPA anywhere — even in the freezer*. Three flexible feedback modes Mix and match the feedback modes that are ideal in your environment — vibration, red and green LEDs located in an area where they are always easy to see, plus the traditional loud beep tone.

DataCapture DNA
Zebra’s DataCapture DNA is a technology platform of highly intelligent firmware, software, utilities and apps exclusively engineered for Zebra scanners. Leveraging more than 35 years of Zebra’s industry expertise, DataCapture DNA delivers innovations that give our best-in-breed imagers greater intelligence and simplicity. When combined with the unstoppable performance found in every 3600 Series ultra-rugged scanner, DataCapture DNA turns Zebra’s 3600 Series scanners into powerful tools that help to resolve tomorrow’s data capture challenges today — and help your workers get more done each day.

PHYSICAL CHARACTERISTICS
Dimensions
Corded: 7.3 in. H x 3.0 in. W x 5.2 in. D | 18.5 cm H x 7.6 cm W x 13.2 cm D
Cordless: 7.3 in. H x 3.0 in. W x 5.6 in. D | 18.5 cm H x 7.6 cm W x 14.3 cm D
Weight Corded: 10.72 oz./304 g
Cordless: 14.18 oz./402 g
Input Voltage Range Host powered: 4.5 VDC min., 5.5 VDC max. External power supply: 11.4 VDC min., 12.6 VDC max.
Operating Current DS3608-DP (corded): 360 mA (RMS typical)
Standby Current DS3608-DP (corded): 100 mA (RMS typical)
Color Industrial Green
Supported Host Interfaces USB, RS232, Keyboard Wedge, Industrial Ethernet: EtherNet/IP, Profinet, Modbus, TCP & Std TCP/IP
Battery PowerPrecision+ 3100 mAh Li-Ion rechargeable battery
User Indicators Direct decode indicator; LEDs; beeper; vibration

PERFORMANCE CHARACTERISTICS
Scans per Full Charge 100,000+
Image Capture Basic
Illumination Direct: Two (2) warm white light LED ; Diffuse: Ring of red 634 nm LEDs
Aimer 655 nm laser
Imager Field of View Horizontal: 31°, Vertical: 23°
Image Sensor 1280 x 960 pixels
Minimum Print Contrast 15% minimum reflective difference
Skew/Pitch/Roll Skew: ± 60°; Pitch: ± 60°; Roll: ± 360°

DECODE CAPABILITIES**
1D Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)

2D PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes

IUID Support Support IUID parsing, the ability to read and Separate IUID fields per application requirements

USER ENVIRONMENT
Operating Temp. Corded: -22° F to 122° F/-30° C to 50° C
Cordless: -4° F to 122° F/-20° C to 50° C
Storage Temp. -40° F to 158° F/-40° C to 70° C
Humidity 5% to 95% non-condensing
Drop Specification Withstands multiple 8.0 ft. / 2.4 m drops to concrete
Tumble Specification 5,000 tumbles @ 3.3 ft. (1 m)
Sealing Scanner: IP65 and IP67
FLB cradle: IP65
ESD Per EN61000-4-2, ±25 KV air discharge, ±10 KV direct discharge, ±10 KV indirect discharge
Ambient Light Immunity 0 to 10,037 Foot Candles/O to 108,000 Lux (direct sunlight)

UTILITIES AND MAINTENANCE
123Scan Programs scanner parameters, upgrades firmware, provides scanned barcode data and prints reports.
Scanner SDK Generates a fully-featured scanner application, including documentation, drivers, test utilities and sample source code.
Scanner Management Service (SMS) Remotely manages your Zebra scanner and queries its asset information.
Network Connect Seamlessly connects 3600 Series scanners directly to your Industrial Ethernet network without any third party conversion equipment.

WIRELESS CONNECTIVITY
Bluetooth Radio Bluetooth Class 1, Version 4.0 (LE), serial port and HID profiles
Data Rate 3 Mbit/s (2.1 Mbit/s) for Classic Bluetooth
1 Mbit/s (0.27 Mbit/s) for Low Energy
Radio Range Direct line of sight in open air: Class 1: Minimum 300 ft. (100.0 m); Class 2: Minimum 30 ft. (10.0 m)

REGULATORY
Environmental RoHS EN 50581: 2012
Electrical Safety EU Safety: EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + AC 2011 + A2: 2013 International Safety: IEC 60950-1: 2005 + A1: 2009 + A2: 2013 US/Canada Safety: UL 60950-1, second edition, CAN/CSA-C22.2 No. 60950-1-07
LED Safety International LED Safety: IEC 62471: 2006 (Ed.1.0); EN 62471: 2008 (LED)
EMI/RFI IT Emissions: EN 55022: 2010/AC: 2011 (Class B); IT Immunity: EN 55024: 2010; Heavy Industrial: EN 61000-6-2: 2005/AC:2005; Harmonic Current Emissions: EN 61000-3-2: 2006 + A1: 2009 + A2: 2009 (Class B); Voltage Fluctuation and Flicker: EN 61000-3-3: 2013; Medical Electrical Equipment: EN 60601-1-2: 2007/AC: 2010, IEC 60601-1-2: 2007 (Modified); Radio Frequency Devices: 47 CFR Part 15, Subpart B, Class B Digital Apparatus: ICES-003 Issue 5, Class B

DECODE RANGES

Symbology/Resolution Near/Far

Code 39: 3.0 mil 0.5-4.7 in./1.3-11.9 cm

Code 39: 5.0 mil 0.2-5.6 in./0.5-14.2 cm

PDF417: 6.6 mil 0.1-4.0 in./0.3-10.2 cm

Datamatrix: 5.0 mil 1.2-2.9 in./3.0-7.4 cm

Datamatrix: 10.0 mil 0.1-4.9 in./0.3-12.5 cm

QR: 10.0 mil 0.1-4.8 in./0.3-12.2 cm 100%

UPC: 13.0 mil ***0.4-9.6 in./***1.0-24.4 cm

C128: 15.0 mil ***3.3-10.0 in./***8.4-25.4 cm
