Description

• Automatic Trigger: Use scanner as either a hand-held device or a fixed presentation scanner when mounted in the stand.
• 650-nanometer Laser: High-visibility laser allows user to place laser line on selected bar code.
• CodeGate Technology (VoyagerCG 9540 only): Zero in on desired code and complete data transmission with the push of a single button—:ideal for menu scanning applications.
• Parsing (Data Editing): Format bar code data to meet host system’:s specific requirements.
• Flash ROM: Future proof POS system with free firmware updates via MetroSet®:2 software and standard PC.

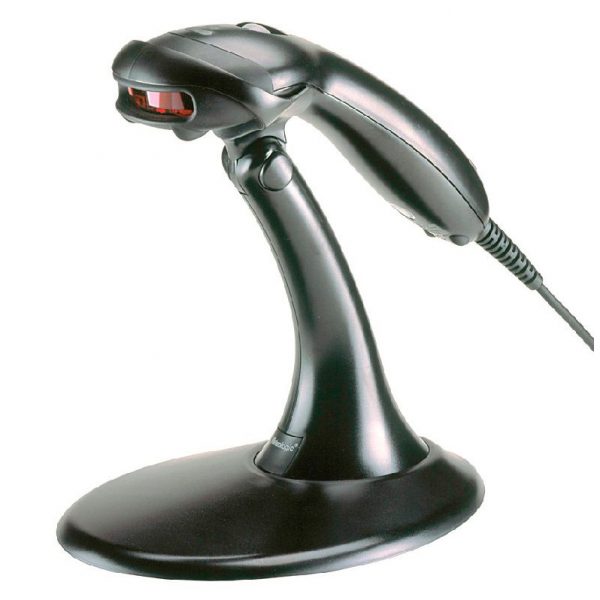

The VoyagerCG 9540 handheld, single-line laser scanners offer aggressive scanning of all standard 1D barcodes. Uniting form with function, the Voyager series has become the industry benchmark for value and performance. These sleek scanners feature patented, automatic infrared activation and decode all standard 1D barcodes, including GS1 DataBar™: (formerly known as RSS codes). The VoyagerCG 9540 also includes patented CodeGate™: technology, which allows you to easily target the desired barcode and complete data transmission with the press of a single button. For presentation scanning, Honeywell offers a stand with automatic in-stand detection technology.

FEATURES
Form Factor
Curved Features
Automatic Trigger
MetroSet™2 Software
CodeGate™ Technology

DIMENSIONS
Overall Dimensions 19.8 x 7.8 x 5.6 cm / 7.8 x 3.1 x 2.2 in
SCANNING SPECIFICATIONS
Skew 52
Scan Pattern Single Scan Line
Decode Capability 1D
Depth of Field 0 - 10 in
Pitch 68
Scanning Range Standard range (SR)
Print Contrast 35

NETWORK
Bluetooth No
Bluetooth Specifications N/A

HARDWARE
Wireless No
Aimer Type LED
Engine Type 1D Laser
Host System Interface OCIA / Light Pen Wand Emulation / KBW / RS-232 / Laser Emulation / USB / RS-485
ELECTRICAL
Operating Power 0.825 W
Input Voltage 5 V DC
Standby Power 0.6

ENVIRONMENTAL
Storage Temperature Range
- 40 - 60 °C
- 40 - 140 °F

Operating Temperature
32 - 104 °F
0 - 40 °C

Operating Humidity
5 - 95 %

STANDARDS & APPROVALS
Drop Specifications Multiple 1.5 m (5 ft) drops

SERVICE TERMS
Warranty Duration 5 yr

OTHERS
Power Connector Type Corded
