Description

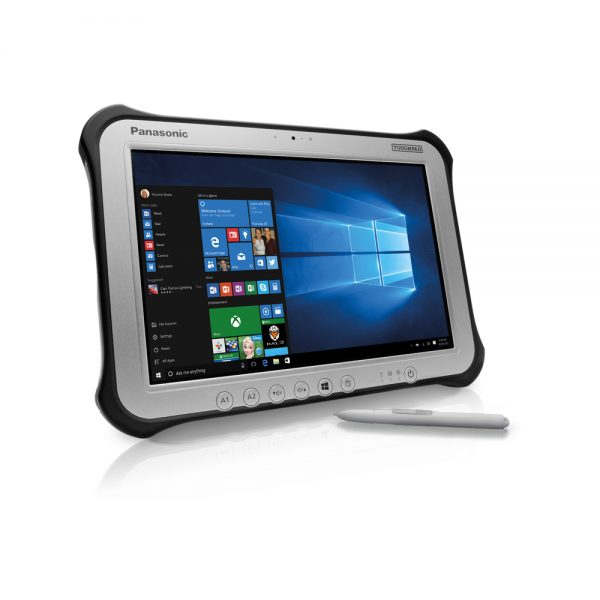

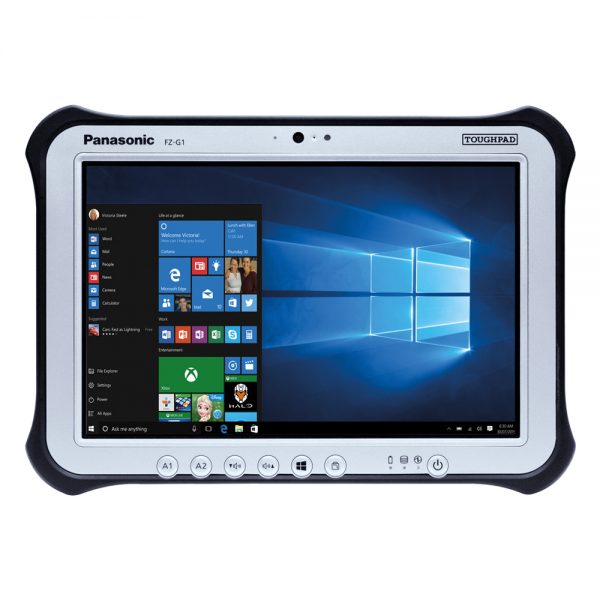

LIGHTWEIGHT, FULLY RUGGED WINDOWS 10 PRO TABLET WITH 10.1″ NEXT GENERATION OUTDOOR FULLHD DISPLAY

The flexible configuration port gives business users the legacy port options they require in a compact, fully rugged and lightweight form factor.

• Intel® Core™ i5-7300U vPro Processor
• Windows 10 Pro
• Intel HD graphics 620
• Next generation IPSα outdoor display technology
• 10.1″ high brightness WUXGA (1920×1200) display (up to 800cd/m²)
• Capacitive 10 finger multi-touchscreen + digitizer
• 120cm shock resistant*
• Water and dust resistant (IP65)*
• Up to 14 hours battery life with user replaceable battery
• Optional Hot swap function
• Flexible configuration port (serial, LAN, micro SD or USB 2.0)
• Lightweight design – weights approx. 1,1kg
• 3 year standard warranty

*Tested by an independent third party lab following MIL-STD-810G and IEC 60529, Sections 13.4, 13.6.2, 14.2.5 and 14.3

Mobile Computing Platform Intel® Core™ i5-7300U vPro™

Processor 2.6GHz up to 3.5GHz with Intel® Turbo Boost Technology, 3MB cache

Operating System Windows 10 Pro

Memory & Storage 8GB RAM 256GB SSD (option: 512GB SSD)

Display 10.1" sunlight-viewable WUXGA Active Matrix (TFT) IPS colour LCD (up to 800cd/m2 brightness)

Graphic chip: Intel® HD Graphics 620

Touchscreen: 10 finger capacitive multi-touchscreen + digitizer

Camera Front: 2MP, FHD Max 1920 x 1080, 30fps

Camera Rear: 8MP with autofocus and LED flash (option)

Expansion Slots Micro SDXC card: x1 (option)*

Interface

Serial (16550A compatible): D-sub, 9-pin (option)*

LAN: RJ-45 (option)*

HDMI: x1

Headset: x1

USB 3.0: x1

USB 2.0: x1 (option)*

Port Replicator Connector: 24 pin

Dual External Antenna Connector: x1

GPS: x1 (option)*

2D Barcode Reader: x1 (option)*

Thermography: x1 (option)*

Connectivity

Bluetooth®: Version 4.2 (Class 1)

WLAN: Intel® Dual Band Wireless-AC 8265

WWAN: Option (4G LTE)

Power

AC Adapter: Input 100V - 240V AC, 50Hz/60Hz Output 16V DC, 4.06A

Battery: Standard: Lithium-Ion (11.1V, 4200mAh) Large: Lithium-Ion (10.8V, 9300mAh) Hot Swap Battery (option)

Operating Time: Standard: Up to 11 hours, MobileMark™2014**** Large: Up to 22 hours, MobileMark™2014****

Security technology TPM (Trusted Platform Module, TCG V2.0 compliant), Integrated hardware security lock slot, Password security (supervisor password, user password, HDD lock)

Dimensions (W x H x D) 270mm x 188mm x 19mm

Weight Approx. 1.1kg

Integration Options Selectable one from Smartcard reader, Contactless Smartcard Reader, Bridge Battery or Smartcard Reader + Bridge Battery

Accessories (Options)

Desktop cradle FZ-VEBG11AU (Both VGA and HDMI output)

Countertop POS cradle FZ-VEBG12M

Battery Pack 6 cells SG/MY: FZ-VZSU84A2U TH: FZ-VZSU84AUZ

AC adaptor SG: CF-AA6413ACY TH/ID: CF-AA6413ACC

AC adaptor (for MIL461F compliant model only) SG: CF-AA5713AY TH/ID: CF-AA5713AC

Digitizer pen FZ-VNPG11U

Digitizer pen(waterproof type) FZ-VNPG12U

LCD protective film FZ-VPFG11U

Charger attachment FZ-VCBAG11U Charger CF-VCBTB3W

Tether FZ-VNTG11U

Ruggedisation

MIL-STD-810G certified

Dust & Water resistance test: IP65**

Gravity drop resistance test: 120cm. Test conducted in non-operating condition***

Operating temperature: -10°C to +50°C {14°F to 122°F}

Storage temperature: -20°C to +60°C {-4°F to 140°F}
