Description

With its capacitive 10-finger multi-touch outdoor display and flexible configurations (integrated business expansion module), this Windows 10 Pro tablet has been designed to optimise the efficiency of field workers. It benefits from various connectivity options to ensure data is always available when needed and gives business users the legacy options they require in a compact, fully rugged and lightweight form factor. Never before has so much flexibility and performance been packed into such a compact, durable tablet with such great outdoor viewing capability.

• Intel® Core™ m5-6Y57 vPro Processor
• Windows 10 Pro
• Intel HD graphics 515
• Fanless design
• 7″ WXGA (1200×800) outdoor display (up to 500cd/m²)
• Capacitive 10-finger multi-touchscreen
• 180cm shock resistant*
• Water and dust resistant (IP65)*
• Up to 8 hours battery life with user replaceable battery

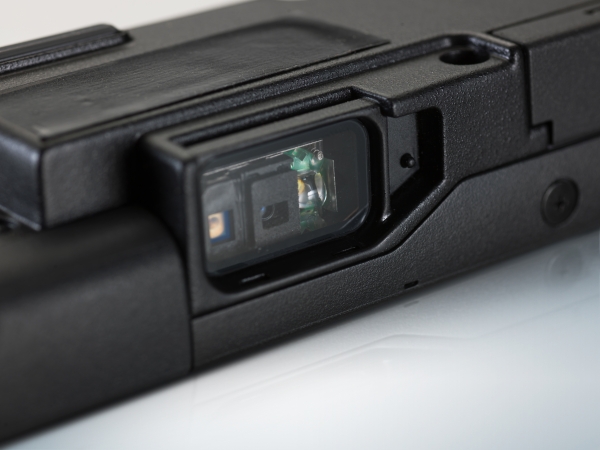

• Flexible configuration port (serial, LAN, 2D Barcode Reader, NFC)
• Integrated business expansion module (Hot Swap battery, RFID, UHF RFID, Smartcard Reader, RealSense)
• Lightweight and pocket size: weights approx. 540g
• 3 year standard warranty

 *Tested by an independent third party lab following MIL-STD-810G and IEC 60529, Sections 13.4, 13.6.2, 14.2.5 and 14.3

Ecodesign Information under EU Regulation 617/2013, please visit here: www.ptc.panasonic.eu

Mobile Computing Platform Intel® Celeron N2807 processor (1.58GHz, 1MB L2 Cache)

Operating System Windows 8.1 Pro

RAM 4GB

Graphic Chip Intel® HD Graphics

Camera Front: 2mpixel Rear: 5mpixel with autofocus and LED light

Storage 128GB Solid State Drive (Serial ATA)

LCD 7" sunlight-viewable WXGA Active Matrix (TFT) colour LCD (up to 500cd/m² brightness)

Touchscreen 10 finger capacitive multi-touchscreen

Bluetooth® Version 4.0 + EDR Class 1

WLAN Intel® Dual Band Wireless-AC 7260

4G Mobile Broadband Gobi 5000, supports 3G

GSM-R Optional NFC ISO 14443

Smartcard ISO 7816 Class A, B and C

Sound WAVE and MIDI playback, Intel® High Definition Audio subsystem support, Microphone arrays (built-in)

Interface

USB 3.0: x1

Headset: x1

Port Replicator Connector: x1

Expansion slots Micro SD/SDXC Memory Card: x1

Power

AC Adapter Input: 100V - 240V AC, 50Hz/60Hz, Output: 16V DC, 4.06A

Battery Lithium-Ion (7.2V, 3320mAh)

Operating Time 16 hours, MobileMark™ 2007, 60cd/m²

Hot Swap Included as standard

Security Features

TPM (Trusted Platform ModuleTCG V2.0 Windows 8.1 compliant)

Integrated hardware security lock slot

Physical Dimensions (W x D x H) 203mm x 31mm x 132mm {7.98" x 1.20" x 5.20"}

Weight Approx. 850g {Approx. 1.87lbs}

Testing Standards

Water resistance test: IP-X5*

Dust resistance test: IP-6X*

Gravity drop resistance test: 150cm*

Accessories

AC-Adapter: CF-AA6373AE/G/T

4-Cell Battery: FZ-VZSU95W

4-Bay Battery Charger: FZ-VCBM11U

Desktop Cradle: FZ-VEBM12U Lite

Desktop Cradle: FZ-VEBM11U

Capacitive Stylus Pen: FZ-VNPM11U
