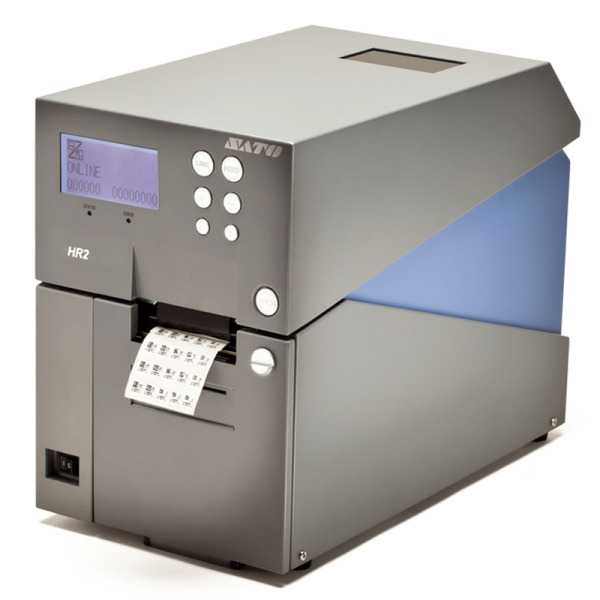

Sato HR224 Industrial Thermal Printer
The HR2 Series, 2″ Thermal Transfer Printer performs with a High Printing Accuracy and High Printing Resolution for printing on very small labels Designed specifically for applications that require printing on very small labels. Constructed with a heavy-duty metallic casing, the HR2 series printer is fit for use in demanding industrial environments that have space constraints. Integrated with a dispenser and rewinder, the printer offers convenience and efficiency by being able to dispense the label (without the backing liner) and rewind the backing material from the dispensed labels all at the same time automatically after every print. With the user in mind, the label and ribbon compartments are uniquely designed at the top of the printer for easy access and loading. Multiple standard communication interfaces like LAN, USB, RS-232C and EXT Port are integrated at the rear side of the printer for a wide variety of application connection.
Request for quotation for:
Sato HR224 Industrial Thermal Printer
- Description
- Specifications
- Brochure
Description
High Precision Industrial Thermal Printer
Specifically designed for applications that need to print on small labels measuring only 3mm(P) x 7mm(W) within high precision printing of +/-0.3mm*
High Resolution Printing
Capable of printing high resolution barcodes and images on small labels at 305dpi or 609dpi resolution.
Industrial Space-Saving Design

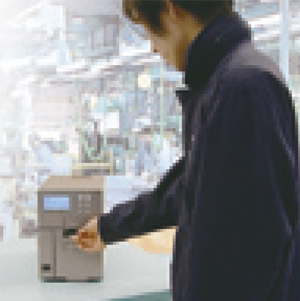

The printer heavy-duty metallic construction is designed for the most demanding industrial environments that have limitations on space.

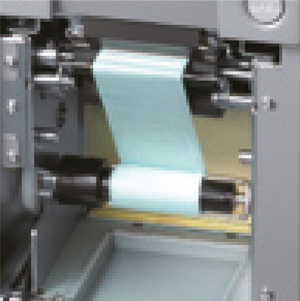

Integrated Dispenser with Internal Liner Rewinder

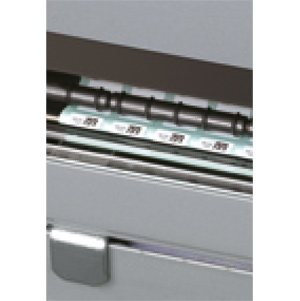

The printer integrated dispenser provides the ability to automatically dispense small labels without the liner for easy application after printing while internally rewinding the backing material from the dispensed labels.
Easy Media Loading

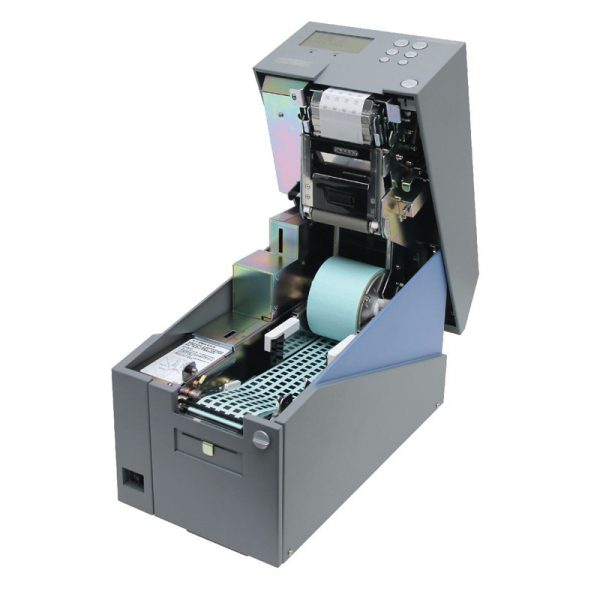

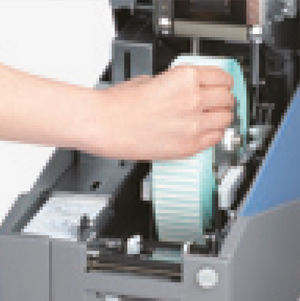

Easy loading of labels and ribbons as the top cover is uniquely designed to open upwards for providing easy access to the media compartment.
Multiple Communication Interfaces

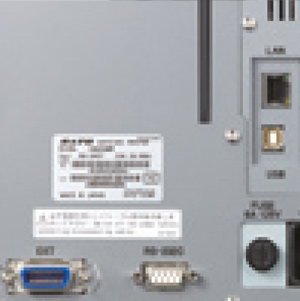

Multiple standard communication interfaces – LAN, USB, RS-232C and EXT Port, ensuring easy-integration to a wide variety of applications.
Applications
- Mobile phone and laptop batteries labelling
- Electronic components and circuit boards (PCB) labeling
- Cosmetics and small bottles labelling
- Serial numbered nameplates
Print Resolution 609dpi
Print Speed 4 ips (max)
Print Area Max Width W2.2" (56 mm) x P 7.9" (200mm)
Media Width 0.3" (7 mm) ~ 2.3" (58 mm)
Ribbon Width 2.55" (65 mm)
Options SD Card Dimensions D:14.37" (365 mm) W: 7.75" (197 mm) H: 11.22" (285mm)
Weight 36.16 lbs. ( 16.4 kgs)
Print Method Thermal Transfer
Sensor Type Gap (Transmissive), I-Mark (Reflective), Cover Open, Dispense, Ribbon End, Rewinder Full, Head Lift
Media Thickness (Label & Liner) 0.005" (0.13 mm) ~ .008" (0.220 mm)
Roll Diameter 7.3" (185 mm) Max. Outer diameter
Wind Face-in/ Face-out, No setting change required.
Ribbon Length 492.1 ft (150 m)
Roll Diameter Maximum 2.0" (51 mm)
CPU & OS Flash ROM 32MB, SDRAM 16MB, External Memory SD Card (Up to 2GB)
Communication Standard USB 2.0, LAN (10BASE-T / 100BASE-TX Auto detection), RS232C (DSUB9 pin female), EXT Port (Amphenol 14 pin-female), SD card slot (1 slot)
BARCODE SYMBOLOGIES
1D UPC-A, UPC-E, JAN 13, JAN 8, EAN-13, EAN-8, CODE39, CODE93, CODE128 (128A, 128B, 128C), GS1-128 (UCC/EAN128), Code 93, Code 128, CODABAR (NW7), EAN 8/13, GS-1 Databar, GS-1 128 (UCC/ EAN 128) (Character set: Set-A, Set-B, Set-C), CODABAR (NW-7), ITF, Industrial 2of5, MAtrix 2 of 5, Customer Barcode, UPC add-on barcode, GS1 Databar (RSS), Composite Symbols.
2D QR Code, Micro QR, PDF417, MicroPDF, MAXI code, GSI DataMatrix (ECC200), Security QR Code
Power Supply At peak: 115W / 115VA (Print ratio 30%), In standby: 26W / 27VA
