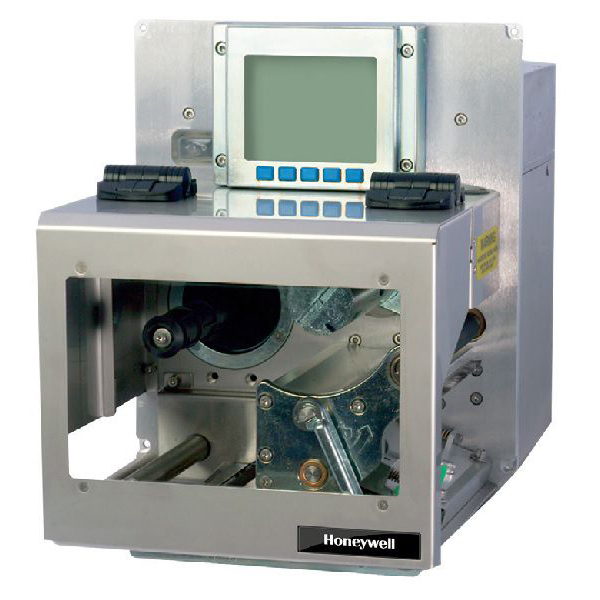

Honeywell A-Class Mark II Print Engine
The A-Class™: Mark II family of advanced print engines is designed for high-demand, multi-shift print-and-apply label application where fast throughput and proven reliability are a must. Innovative features include a modular design for enhanced serviceability, coated-side-in or coated-side-out thermal-transfer ribbon assembly, and more.
- Fully integrated UHF RFID solutions are also available.
- A stainless-steel cabinet protects your printer for years of service in rugged and extreme environments.
- Expanded connectivity includes four types of communication ports as standard features: 10/100 LAN, USB, Serial, and Parallel.
- Seamlessly integrates into most existing solutions using PL-Z and PL-I language emulation without changing code.
- A large graphic display enables easy navigation, advanced setups, and simple operator use.
Request for quotation for:
Honeywell A-Class Mark II Print Engine
- Description
- Specifications
Description
When your demanding print-and-apply label applications require more features than standard print engines offer, it’:s time to move up to the A-Class Mark II family. These advanced print engines are designed for high-demand, multi-shift applications that require fast throughput and proven reliability. A-Class Mark II printers use industry-recognized firmware architecture with maximum connectivity options for industry-standard communications interfaces. They support the industry-recommended OEM 5 bolt mounting connection for seamless integration into your system. And PL-Z (Zebra) printer language emulation allows you to seamlessly integrate the A-Class into existing solutions without changing label formats.
Specifications at a glance:
- Printhead: Direct thermal: optional thermal transfer
- Right-hand or left-hand models
- Printer length range: 6 mm to 2,539.8 mm (0.25 in to 100 in)
- Maximum print width: 105.66 mm (4.16 in) or 162.56 mm (6.4 in)
- Print speed: •: A-4212: 304 mms (12 ips), 8 mmps (203 dpi) •: A-4310: 254 mms (10 ips), 12 mmps (300 dpi) •: A-4408: 203 mms (8 ips), 16 mmps (406 dpi) •: A-4606: 152 mms (6 ips), 24 mmps (600 dpi) •: A-6212: 304 mms (12 ips), 8 mmps (203 dpi) •: A-6310: 254 mms (10 ips), 12 mmps (300 dpi)
- Communication: Serial RS232, parallel bi-directional, Ethernet-wired LAN 10/100, USB 2.0 compatible, GPIO applicator card
- Optional wireless 802.11b/g, USB-host, SDIO memory slot
FEATURES
- Features
- Rugged
- Easy to Upgrade
- Door Options
- Standard
- Compatible Software
- DMX NetManager
- Compatible Drivers
- Windows Vista
- Windows XP
- Windows NT
PRINTING SPECIFICATIONS
- Resolutions
- 300 dpi
- 203 dpi
- 2D Barcodes
- Micro PDF417
- Code 16k
- QR-Code
- GS1 Databar
- Aztec
- MaxiCode
- USD-8
- TLC 39
- Codeablock
- Data Matrix
- PDF417
- Font Modification
- Rotation
- Expansion
- Mirror Image
- Resident Font
- CG Triumvirate
- OCR-A
- CG Triumvirate & CG Times with Cyrillic, Greek, Arabic and Hebrew character support
- OCR-B
- CG Triumvirate Bold Condensed
- Downloadable Font Type
- TrueType
- Bitmap
- Print Method
- Thermal Transfer
- Direct Thermal
- Linear Barcodes
- EAN-8
- Telepen
- Code 128
- USPS-4 State
- UPC-E
- Plessey
- UPC-A
- Postnet
- Interleaved 2 of 5
- EAN-13
- Code 93
- Code 3 of 9
- Code 11
- Std 2 of 5
- FIM
- HIBC
- Codabar
- UPC 2- and 5-Digit Addendums
- Planetcode
- Industrial 2 of 5
- Print Speeds
- 12 ips
- 10 ips
MEDIA
- Maximum Ribbon Length
- 650
- 2132
- Printer Media Type
- Ribbon
- Label
- Media Thickness
- 0.0025 - 0.01 in
- 0.06 - 0.25 mm
NETWORK
- Communications Protocol
- 802.11 b/g
- Wireless Communication
- WiFi
SOFTWARE & FIRMWARE
- Printer Command Language
- PL-Z
- PL-I
MEMORY & DATA
- Memory
- 8 MB Flash/16 MB RAM
- Image File Format
- IMG
- BMP
- PCX
ELECTRICAL
- Operating Voltage
- 180 - 264 V AC
- 90 - 132 V AC
- Operating Frequency
- 47 - 63 Hz
ENVIRONMENTAL
- Storage Temperature Range
- - 40 - 60 °C
- - 40 - 140 °F
- Operating Temperature
- 4 - 38 °C
- 40 - 100 °F
- Operating Humidity
- 5 - 95 %
SERVICE TERMS
- Warranty Duration
- 1 yr
