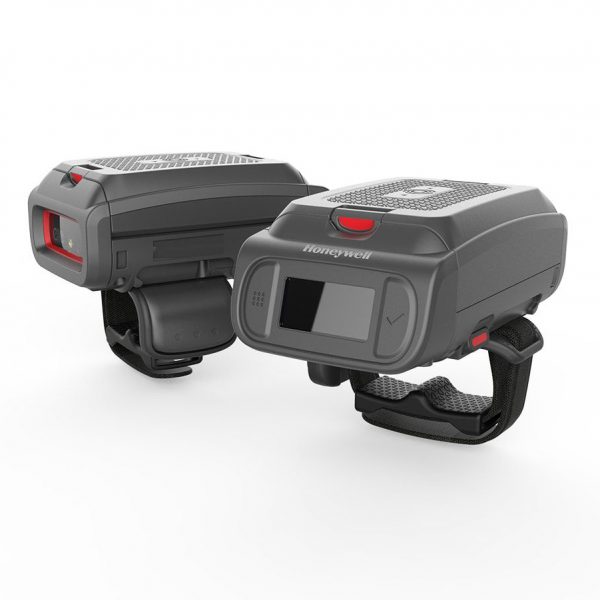

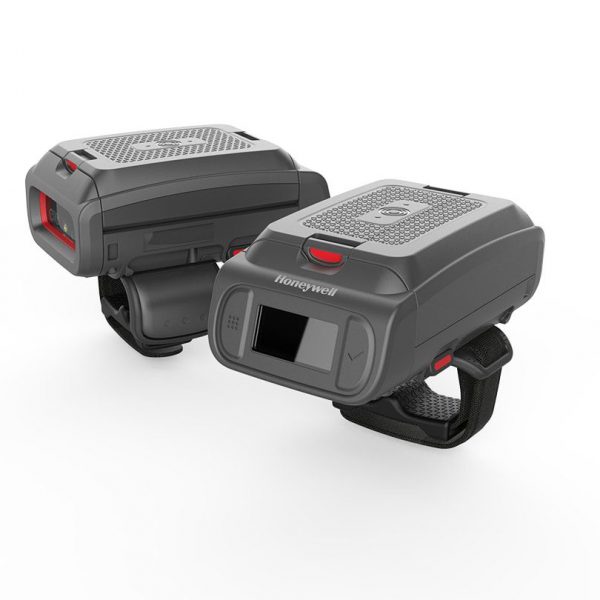

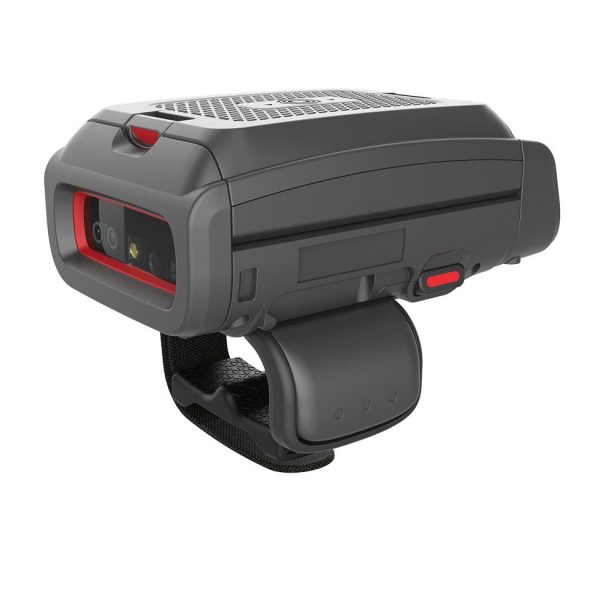

Honeywell 8690i Wearable RFID Mini Mobile Computer

The Honeywell 8690i wearable device is a compact, high-performance, hands-free mini mobile computer for your business that will help you improve workflow efficiency and reduce costs.

  • Industry-standard EPC Global Class 1 Gen 2, RFID reader ensures that the 8690i can read all common supply chain RFID tags.
  • Reduce acquisition and operations costs with the customizable line-of-sight color display, WiFi, and SDK for application development, enabling the 8690i device to support streamlined workflows as a standalone device, replacing scanner, reader, and mobile computer alternatives.
  • Customize to fit multiple applications with field-reconfigurable accessories that enable ring or glove mounts. Chargers are available for devices and batteries in 4 or 12 bay options for distributed or large scale consolidated deployments.
  • Engineered for 2,000 0.5 meter (1.6 feet) tumbles, the 8690i wearable mini mobile is built to endure rugged work environments and real-world use.
  • Honeywell Operational Intelligence workflow analytics to manage battery population lifecycle, ensuring uninterrupted full-shift operation: simple deployment of setting and firmware updates.

Request for quotation for:
Honeywell 8690i Wearable RFID Mini Mobile Computer

  • Description
  • Specifications

Description

The Honeywell 8690i device is a compact, high-performance, hands-free mini mobile computer that will help your business improve workflow efficiency and reduce costs. •….Drives streamlined workflows via a single device for many applications, replacing an RFID reader, scanner and mobile computer. •….Customizable user-facing display communicates workflow instructions, while the two-button interface enables users to navigate menus and confirm selections. •….Connects directly to the network application through Wi-Fi and the SDK, even enabling offline functionality via TotalFreedom™ plug-in development. With the wearable 8690i mobile computer, you’ll be able to converge common applications such as picking, packing and sorting onto a single device. This will not only improve ergonomics, it will also reduce your acquisition and operating costs when compared to wearable scanner plus mobile computer solutions. And with non-line-of-sight RFID product and location identification, you can reduce the number of steps in your high-frequency workflows by up to 66% per transaction compared to handheld barcode scanning applications – yielding a significant increase in productivity and operational throughput. Find out more about what your business can accomplish with the 8690i Wearable RFID Mini Mobile Computer and Honeywell workflow solutions.

DIMENSIONS

  • Overall Dimensions
  • 3.8 in x 2.2 in x 1.6 in
  • 95.7 mm x 56 mm x 39.4 mm

SCANNING SPECIFICATIONS

  • Brightness
  • 0 to 100,000 lux
  • Skew
  • ±60°
  • Motion Tolerance
  • Up to 584 cm (230 in)/second
  • Decode Capability
  • 1D/2D
  • Pitch
  • ±45°
  • Scanning Range
  • Standard range (SR)

NETWORK

  • Bluetooth Specifications
  • 2.4 GHz to 2.5 GHz (ISM Band) Adaptive Frequency Hopping Bluetooth® v. 5.0: Class 1;

ENVIRONMENTAL

  • Storage Temperature Range
  • -20°C to 60°C
  • -4°F to 140°F
  • Operating Temperature
  • -20°C to 50°C
  • -4°F to 122°F
  • Operating Humidity
  • 0% to 95% relative humidity (non- condensing)

STANDARDS & APPROVALS

  • Drop Specifications
  • 36 1.5 m (4.9 ft) drops to concrete
  • Protection Ratings
  • IP54

SERVICE TERMS

  • Warranty Duration
  • Two-year factory warranty (Note: Battery warranty is one year.)

OTHERS

  • Power Connector Type
  • Cordless
