Description

Robust Solutions for High-Volume Labeling

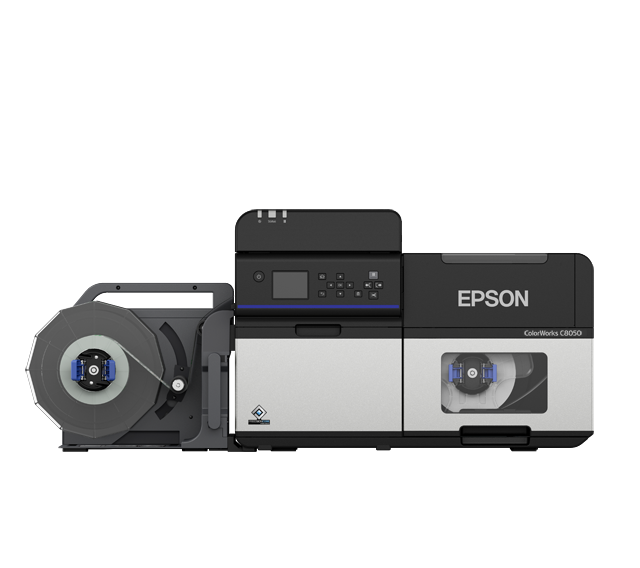

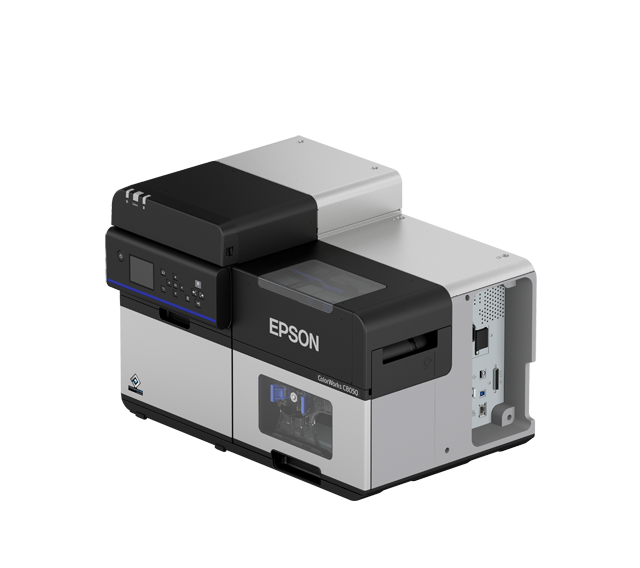

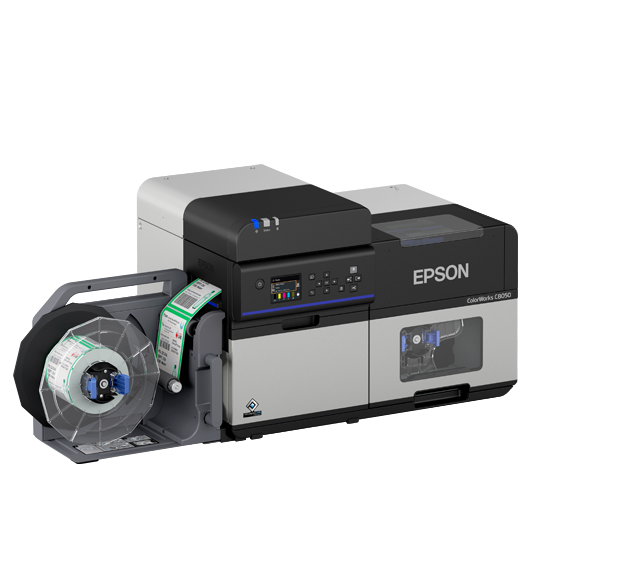

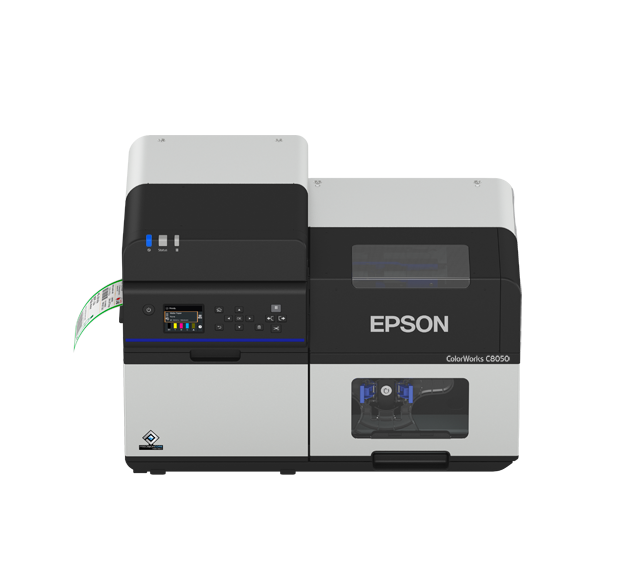

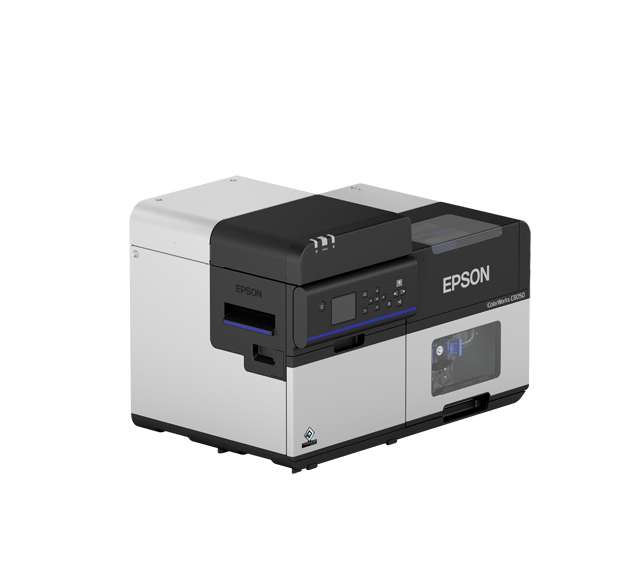

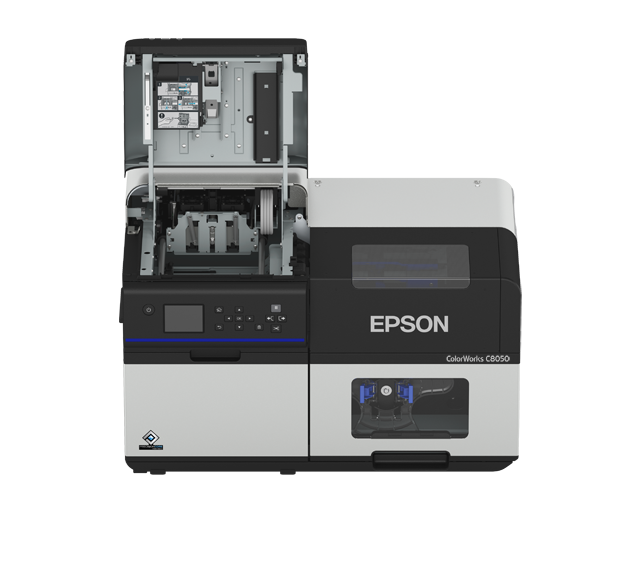

The ColorWorks CW-C8050 is a versatile inkjet label printer designed for high-volume enterprises, facilitating efficient in-house label production on-demand. It supports various media types and widths from 1 to 4 inches, delivering exceptional print quality and speed. Its user-friendly design ensures easy maintenance, while the unique paper path design, along with adjustable platen gaps and advanced sensors, enables seamless printing on diverse materials.

Superior Print Quality

The CW-C8050 printer offers an impressive resolution of 600x1200dpi, making it perfect for barcode scanning and fine text. High print consistency is achieved through the Epson PrecisionCore printhead and UltraChrome DL Pigment inks. With nozzle verification technology, you can maintain optimal print quality even if nozzles become clogged. Additionally, spot colour management and ICC profiling ensure precise colour matching for outstanding results.

Versatile Media Options

The CW-C8050 provides an adaptable selection of media and inks tailored to meet diverse customer needs, utilising high-durability inks for consistently exceptional results. It accommodates both matte and high gloss media, as well as films and synthetic materials. Thanks to its adjustable platen gap, you can effortlessly print on thicker media up to 0.6mm.

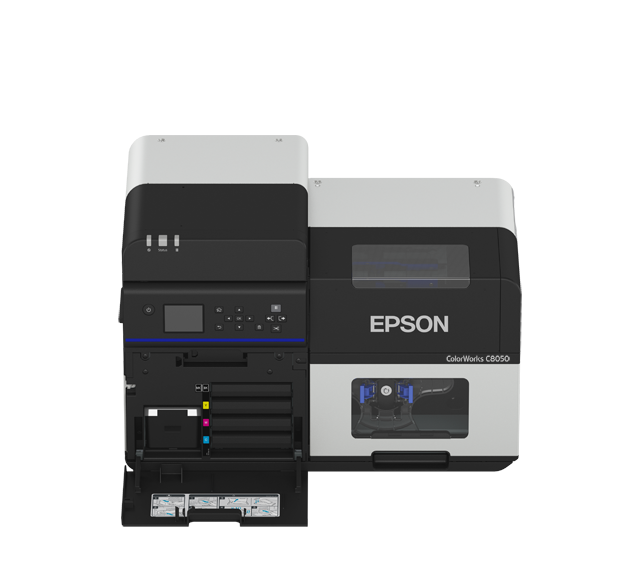

High-Capacity Ink Pack System

The printer features 480ml ink pouches, the largest volume in its class. This capacity enables extended print runs without interruption, minimising downtime and maximising productivity.

MODEL NUMBER CW-C8050

Print Printhead PrecisionCore Printhead, permanent

Printing Technology PrecisionCore Line Inkjet Technology

Maximum Print Resolution 600 x 1,200 dpi

Maximum Print Speed*1 Up to 300 mm per second (11.8”/sec)

Colour Adjustment Epson Preferred Colour, Epson Standard, Epson Vivid Colour

Media Dispense Type Auto Cutter (scissor type), up to 1.5 million cuts

Paper-Feeding Mechanism Life 500 km

Ink

Ink Type UltraChrome DL SJIC52P Pigment Ink

Ink Colours Black (Gloss or Matte Black Options), Cyan, Magenta, Yellow

Ink Pack Configuration Four (4) individual ink packs

Ink Pack Capacity 480 ml each pack*2

Media

Supported Media Types Die-Cut Label, Full-Page Label, Continuous Label, Tag

Supported Media Constructions Plain Paper, Textured Paper, Matte Paper, Synthetic, Glossy Paper, Glossy Film, High Glossy Paper

Die-Cut Label Gap 3 mm – 6 mm (0.12” – 0.24”)

Gap Sensor Position Adjustable; 3 mm – 56 mm (0.12” – 2.20”) from left side; pitch: 1 mm (0.04”)

Black Mark Sensor Position Fixed position; approximately 12.4 mm (0.49”) from left

Black Mark Wdith 19 mm (0.75”) or more from paper edge

Black Mark Length 4 mm – 25.4 mm (0.16” to 1.0”) with 4 mm (0.16”) or more of white space around the black mark

Maximum Print Width 108 mm (4.25”)

Media Width (Min. – Max.)

Internal Roll Media 25.4 mm – 112 mm (1.0” – 4.40”)

External Roll Media, Fanfold 50 mm – 112 mm (1.97” – 4.40”)

Media Length (Min. – Max.) 8 mm – 1,016 mm (0.31” – 40”)

Media Thickness (Min. – Max.) 0.084 mm – 0.600 mm (3.30 mils – 23.62 mils)

Internal Roll Media Media Core Inner Diameter: 76.2 mm (3.0”) Media Maximum Outer Diameter: 203.2 mm (8.0”)

Connectivity

USB USB 3.0 (one port), USB 2.0 (one port)

Ethernet 100Base-T/100Base-TX/10Base-T

Wi-Fi Optional Wi-Fi dongle available (OT-WL06)

General-Purpose I/O Port D-Sub 25

Print Utilities and Remote Management Tools EpsonNet SetupManager, EpsonNet Config SE, Epson Device Admin,  Epson Deployment Tool, PrinterSetting, Colour Tone Matching Assistant, USB Printer Class Device Replacement, Epson Firmware Updater, Epson Cloud Solution PORT*3 Production Monitor, WebConfig

Direct Command-Based Printing Zebra® ZPL II® native language support, plus command extensions, to allow for colourisation of data; ESC/Label color command language; SAP® Direct Printing

Display 2.7” Colour LCD

Supported Operating System Windows® 11, Windows 10 (32-bit/64-bit, Windows 8.1 (32-bit/64-bit), Windows Server® 2022, Windows Server 2019, Windows Server 2016, Windows Server 201, Windows Server 2012 R2, OS X® 10.9.5 or later, MacOS® 10.12 or later, CentOS® 7 (x86_64), Ubuntu 20.04 (x86_64)

Environmental Conditions

Temperature Operating: 5°C to 35°C / Storage: -15°C to 40°C, Up to 120 H; Matte Black Ink: -10°C to 40°C

Humidity Operating: 20% – 80% RH (No Condensation)

Printer Dimensions (W x D x H) 620 x 392 x 420 mm / 24.4 x 15.4 x 16.5 inch

Printer Weight Approx. 35 kg

Packaging Dimensions (W x D x H) 818 x 576 x 616 mm / 32.2 x 22.7 x 24.3 inch

Packaging Weight Approx. 43 kg

Electrical Specifications

Rated Voltage 100 V – 240 V

Rated Frequency 50 Hz – 60 Hz

Power Consumption Operating: Approx. 83.0 kW; Standby: Approx. 3.3 W; Power Off: Approx. 0.4 W

Acoustic Noise Approx. 57 db

EMI FCC Class A, ICES-003 Class A

Eco Features RoHS compliant, Actively uses recycled plastic parts Reduces waste materials by using Replaceable Ink Pack System (RIPS)
