Description

The ColorWorks C7510G label printer returns control to you with
higher quality works and swifter print speeds. The label printer
features Epson’s revolutionary PrecisionCore technology, which is
engineered to deliver precise printing quickly.

Hassle-free Colour Labels On-demand
GHS-compliant label
Designed to meet the needs of customers, the C7510G colour label printer leads the ColorWorks Series in print volume and is capable of high-mix
applications. It allows you to produce multiple colour label variations from blank labels, eliminating the traditional two-step label printing process. It simplifies the print process to improve product identification and productivity whilst eliminating excess inventory.

Consistent Precision
Featuring PrecisionCore printhead technology, Epson’s most advanced
printhead architecture, it is the driving force behind Epson’s lead in both quality and quantity output. This translates to a reliable colour label printer that delivers both consistency and swift printing to meet your needs.

Clarity in Printing
UltraChrome DL ink ensures printouts on glossy and other media stays clear and crisp with easy-to-read text and along
with the appropriate media, printouts are resistant to smudge, fade and water.

Astounding Print Speed
UltraChrome DL ink ensures printouts on glossy and other media stays clear and crisp with easy-to-read text and along with the appropriate media, printouts are resistant to smudge, fade and water. With a print speed of up to 300mm/sec, you can swiftly print full colour labels, rivalling speeds of incumbent thermal monochrome printers. The C7510G label printer executes roll-to-roll operations with the option of a take-up-unit ensuring that overall productivity is increased.

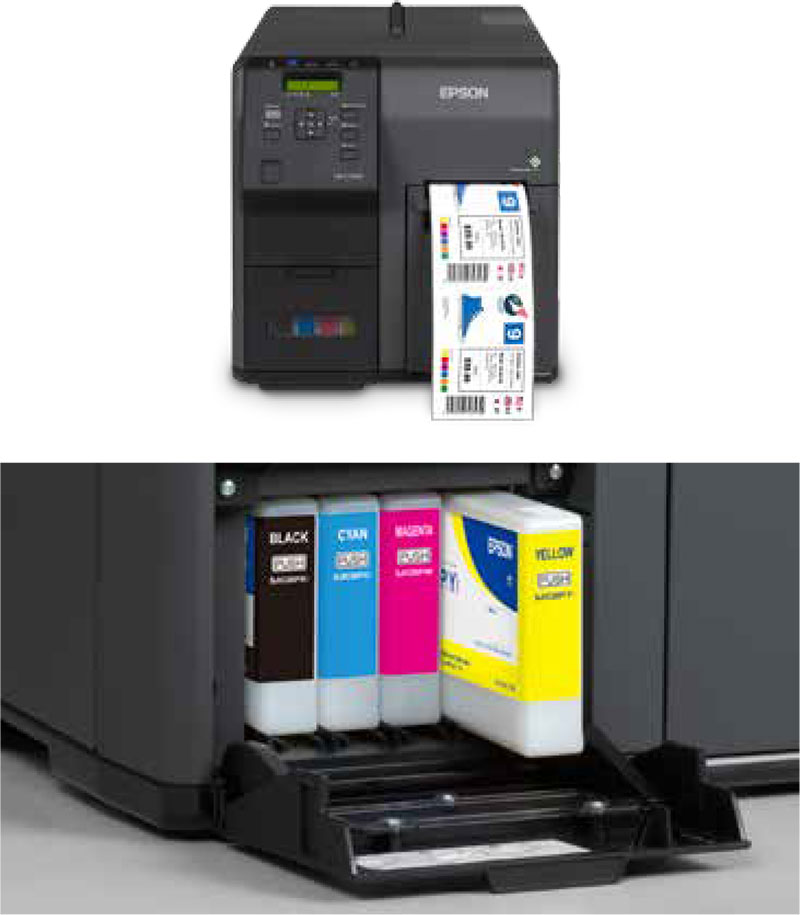

Selective Ink Cartridge Replacement
The C7510G label printer functions with consolidation of individual CMYK ink cartridges which mean ink wastage is now a thing of the past. Only replace empty ink cartridges to fully maximise cost savings and greatly reduce production time.

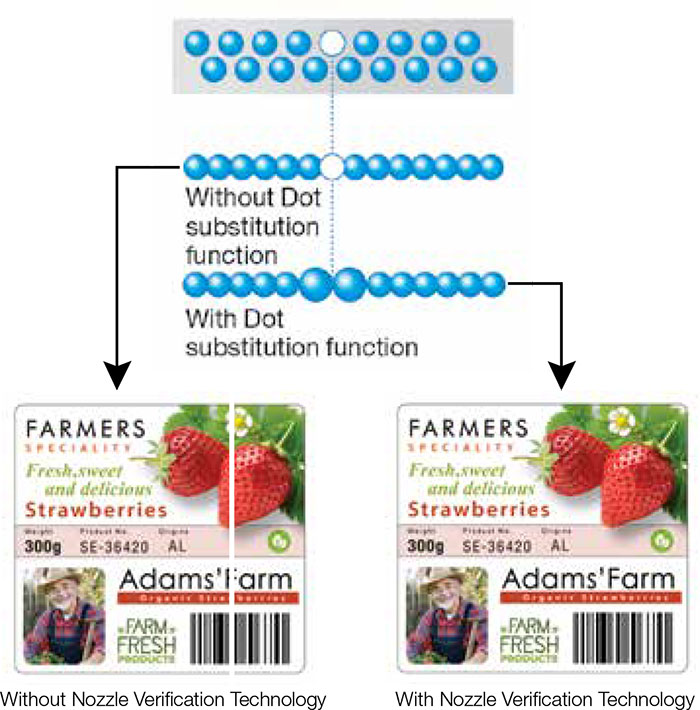

Nozzle Verification Technology (NVT)
The C7510G label printer produces consistent and reliable quality printouts
every time with minimal user intervention through its NVT that works
behind the scenes to detect and revive blocked nozzles back to maximum
operating performance.

Printing Technology:  PrecisionCore TFP® with Nozzle Verification Technology

Colour: Four-colour printing, individual ink cartridge (UltraChrome™ DL pigment ink: C, M, Y, K)

Ink Cartridge:

Colour: Cyan, Magenta, Yellow, Black

Model: SJIC31P(C), SJIC31P(M), SJIC31P(Y), SJIC31P(K)

Print Resolution: 1200 x 600 dpi (true resolution)

Max. Print Width: 4.1" (104mm) max.

Max. Print Speed: 300mm/sec or 150mm/sec

Connectivity:

Interface: USB 2.0 High-Speed, Ethernet 10/100 BASE-T, Ethernet 1000BASE-T

Print Fonts:

Fixed font: Sans serif, OCR-A, OCR-B, Symbol. Scalable font: Sans serif. User can download scalable fonts to the printer

Barcode Font (Printer Driver Built-in):

Barcode: UPC-A, UPC-E, JAN13(EAN), JAN8(EAN), Code39, ITF, Codabar, Code93, Code128, GS1-128, GS1 DataBar Omnidirectional, GS1 DataBar Truncated, GS1 DataBar Limited, GS1 DataBar Expanded

Two-dimensional Code: PDF417, QR Code, GS1 DataBar Stacked, GS1 Omnidirectional, GS1 DataBar Expanded Stacked, DataMatrix, Aztec Code, MicroPDF417, Micro QR Code, Maxi Code

Media Source: Roll-fed, Fanfold

Media Type: Plain, Matte, Glossy, Synthetic

Paper Specifications:

External Roll Diameter: Max. 203.2mm

Paper Core External Diameter: Internal Diameter: 76.2 ± 0.5mm / External Diameter: 82.2mm or more

Number Of Folds: Fanfold Paper: 750 or Less

Winding Direction: Face Out

Autocutter Life:

Die-cut Label: Plain, Matte, Glossy: 1,500,000 cuts Synthetic: 500,000 cuts

Full Page Label: Plain: 750,000 cuts Matte: 200,000 cuts Glossy: 300,000 cuts Synthetic: 100,000 cuts

Temperature / Humidity:

Printing: 5 to 35°C / 20 - 80% RH Humidity (no condensation)

Storage: -20 to 60°C / 5 - 85% RH Humidity (no condensation)

Overall Dimensions: 597 x 391 x 394mm

Mass: Approx. 37.0kg (81.57lb) - Printer (without consumable)

Power Supply: Dedicated AC Adapter

Power Consumption:

Standby: 4.1 - 4.4W

Printing: 50 - 60W (average printing)

Rated Voltage: AC 100 - 240 VAC

Rated Frequency: 50 - 60Hz

EMC Standards: VCCI Class A, FCC Class A, ICES-003 Class A, CE Marking, AS/NZS CISPR22 Class A, CCC, KC, EAC, Ukraine EMC

Safety Standards: UL60950-1/CSA C22.2 No.60950-1, EN60950-1, CCC, KC, EAC, BSMI, Ukraine Safety Standard

Operating System: Microsoft Windows 8.1 (32-bit, 64-bit), Windows 8 (32-bit, 64-bit), Windows 7 SP1 (32-bit, 64-bit), Windows Vista SP2 (32-bit, 64-bit), Windows XP SP3 (32-bit), Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, Windows Server 2008 (32-bit, 64-bit), Windows Server 2003 R2 (32-bit)

Fanfold:

Die-cut Label (Gap):

Label Width: 46 ~ 108mm

Backing Paper Width: 50 ~ 112mm

Thickness: Plain Label, Matte Label: 0.161 ~ 0.164mm

Die-cut Label (BM):

Label Width: 46 ~ 108mm

Backing Paper Width: 50 ~ 112mm

Thickness: Plain Label, Matte Label: 0.161 ~ 0.164mm

Full-page Label (no BM):

Label Width: 46 ~ 108mm

Backing Paper Width: 50 ~ 112mm

Thickness: Plain Label, Matte Label: 0.161 ~ 0.164mm

Roll:

Full-page Label:

(BM/no BM) Label Width: 46 ~ 108mm

(BM/no BM) Backing Paper Width: 50 ~ 112mm

(BM/no BM) Thickness: Plain Label, Matte Label, Synthetic Label: 0.129 ~ 0.236mm

(BM/no BM) Thickness: Glossy Label: 0.167 to 0.182mm

Die-cut Label (gap):

Label Width: 46 ~ 108mm

Backing Paper Width: 50 ~ 112mm

Thickness: Plain Label, Matte Label, Synthetic Label: 0.129 ~ 0.236mm

Thickness: Glossy Label: 0.167 to 0.182mm

Die-cut Label (BM):

Label Width: 46 ~ 108mm

Backing Paper Width: 50 ~ 112mm

Thickness: Plain Label, Matte Label, Synthetic Label: 0.129 ~ 0.236mm

Thickness: Glossy Label: 0.167 to 0.182mm
