Description

Enhanced Production Capability

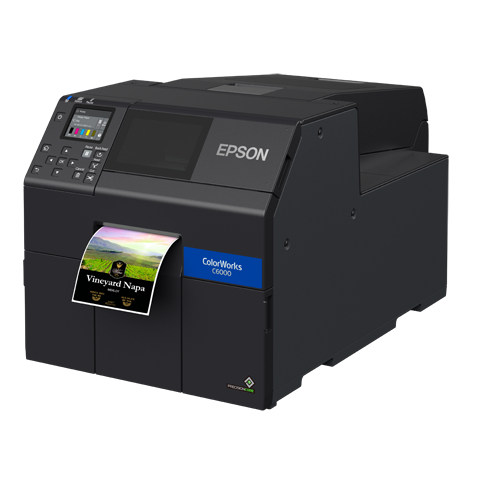

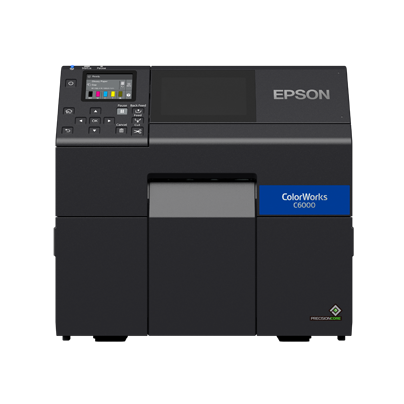

Epson’s C6050A ColorWorks printers come with a built-in auto-cutter that supports individual piece-by-piece cuts, or programmed set pieces of cuts by batch. This includes cutting that is based on the pre-fixed number of prints or cutting at the end of a print batch.

World’s First Peeler-equipped Inkjet Label Printer
Making it possible to apply labels immediately after printing, the C6050P and C6550P can be used in any desktop printing operations. When integrated with a label applicator in the production floor, it offers unique print-and-apply system that can be used both online and offline.

Crisp Images
A higher dpi translates to a clearer, more detailed output. With a print resolution of up to 1200 dpi, variable droplet size and Spot Colour Matching* that assures greater colour accuracy, the C6050A ColorWorks label printers series produce incredible print images.

High Connectivity
Compatible with a wide range of technologies including multiplatform operating systems such as Windows, Mac and Linux along with application software including SAP and legacy systems using ZPL II commands, the set-up process becomes effortless and can be integrated into nearly any workflow seamlessly.

Easy Use and Maintenance
Intuitive designs including easy-load spindle, flexible paper cover and frontal ink cartridge loading allows for quick changes between label sizes, easy access when loading paper and effortless replacement of ink cartridges. Equipped with a 2.7” colour LCD, printer status can be checked and configured when required. Enjoy seamless installation in a variety of environments with the ColorWorks’ space-saving design.

Durable, Exceptional Quality Inks
The ColorWorks C6000 series incorporates UltraChrome DL pigment inks that comply with BS 5609 certification for GHS compliant labelling. These inks possess high pigment density, resin coating for more stability, and an even surface and gloss, making it perfect for professional display and sales.

PrecisionCore TFP Printhead
With its stunning ability to scale while delivering unbeatable speed and precision, the printhead’s perfectly round nozzles dispense precise ink droplets, which guarantee consistent superior image quality.

Printing Technology:

Print Speeds: Matte Paper Label, Synthetic Label: Max Speed (300 x 600 dpi): 85mm/s, Speed (600 x 600 dpi): 49mm/s, Normal (600 x 600 dpi): 34mm/s, Quality (600 x 1200 dpi): 13mm/s *When printing 203.2mm width Glossy Paper Label, Glossy Film Label, High Glossy Paper Label Normal (600 x 600 dpi): 34mm/s, Quality (600 x 1200 dpi): 13mm/s, Max quality (1200 x 1200 dpi): 6mm/s *When printing 203.2mm width

Technolgy: Serial Inkjet PrecisionCore TFP® with Nozzle Verification Technology

Colour: Four-colour printing, individual ink cartridge (UltraChromeTM DL pigment ink: C, M, Y, K)

Ink Cartridge:

Colour: Black, Cyan, Magenta, Yellow

Model: SJIC40P-BK / SJIC40P-C / SJIC40P-M / SJIC40P-Y

Print Resolution: 1200 x 1200 dpi (max.)

Max. Print Width: 211.9mm

Connectivity:

Interface: USB2.0, Ethernet 1000Base-T / 100Base-TX / 10Base-T Extended Interface: Dsub-25pin

Print Fonts: Built-in font available

Barcode Font (Printer Driver Built-in):

Barcode: UPC-A, UPC-E, JAN13(EAN), JAN8(EAN), Code39, ITF, Codabar, Code93, Code128, GS1-128, GS1 DataBar, Omnidirectional, GS1 DataBar Truncated, GS1 DataBar Limited, GS1 DataBar Expanded

Two-dimensional Code: PDF417, QR Code, Maxi Code, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, GS1 DataBar, Expanded Stacked, DataMatrix, Aztec Code, MicroPDF417, Micro QR Code

Media Source: Roll media, Fanfold

Media Type: Matte paper label, Synthetic label, Glossy paper label, Glossy film label, High glossy paper label

Media Form:

Roll: Continuous label (BM or w/o BM), Die-cut label (Gap or BM)

Fanfold: Die-cut label (BM)

Paper Specifications:

Paper Core External Diameter: External Diameter: 82.2mm or more

Number Of Folds: 750 or Less

Winding Direction: Face Out

Autocutter Life:

Die-cut Label:

Matte paper, Glossy paper, Glossy film, High glossy paper: 1,500,000 cuts

Synthetic: 500,000 cuts

Continuous Label: Glossy paper: 300,000 cuts

Matte paper, High glossy paper: 200,000 cuts

Synthetic, Glossy film: 100,000 cuts

Temperature / Humidity:

Printing: 5 to 35°C / 20 to 80% RH Barcode Printing: 15 to 35°C, 20 to 80% RH

Storage: When packed (ink not charged): -20 to 60°C / 5 to 85% RH Humidity (no condensation)

Overall Dimensions: 444 x 515 x 326mm (W x D x H, not including protrusion)

Mass: Approx. 25.5kg

Power Supply: Built-in Power Supply

Power Consumption:

Operating:

100V: Average approximately 39.5W

230V: Average approximately 38.7W

Standby:

100V: Average approximately 7.51W

230V: Average approximately 5.82W

Power Off:

100V: Average approximately 0.08W

230V: Average approximately 0.24W

Rated Voltage: 100 - 240VAC

Rated Frequency: 50 - 60Hz

EMC Standards:

Europe: CE Marking

North America: FCC Class A, CAN ICES-3 (A)/NMB-3 (A) Oceania: Radiocommunications (Electromagnetic Compatibility) Standard, Class A

Operating System: Windows 10, 8.1, 8, 7 SP1, Vista SP2, XP SP3 or later, Server 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003 R2 (32-bit), Mac OS X 10.6.8, Mac OS X 10.7.x, Mac OS X 10.8.x, Mac OS X 10.9.x, Mac OS X 10.10.x, Mac OS X 10.11.x, Mac OS X 10.12.x, Mac OS X 10.13.x, Mac OS X 10.14.x

Printer Details:

Options: Paper Holder C6500 (for C6550 Series)

Media Handling:

Width: Backing Paper Width: 25.4 to 215.9mm

Label Width: 21.4 to 211.9mm

Thickness:

Matt paper label: 0.178mm

Synthetic label: 0.235mm

Glossy paper label: 0.174mm

Glossy film label: 0.164mm

High glossy paper label: 0.188mm

Roll Diameter: Max. 152.4mm

Core Diameter: Inner: 76.2 mm ± 0.5 mm

Die-cut Label Gap: 2 to 6mm (if the gap is 3mm or less, need to adjust the detector)

Black Mark Size: Width: 18.4mm or over

Length: 4 to 25.4mm
